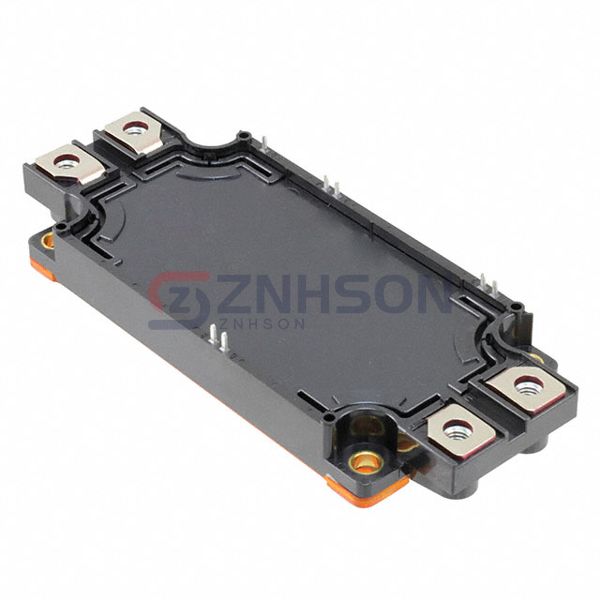

CM225DX-24S1
Powerex Inc.
Powerex Inc.
IGBT MOD 1200V 225A 1250W
$0.00
Available to order
Reference Price (USD)
1+
$96.31000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve precision power control with Powerex Inc.'s CM225DX-24S1 IGBT Module. Its rugged construction and high isolation voltage make it a top choice for marine propulsion and grid infrastructure. Features include solder-free assembly and RoHS compliance. Elevate your systems request a consultation today.
Specifications
- Product Status: Discontinued at Digi-Key
- IGBT Type: -
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 225 A
- Power - Max: 1250 W
- Vce(on) (Max) @ Vge, Ic: 2.35V @ 15V, 225A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 20 nF @ 10 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: -
- Package / Case: Module
- Supplier Device Package: Module
Related Products
Infineon Technologies
BSM35GP120BOSA1
Vishay General Semiconductor - Diodes Division
VS-ENQ030L120S
Infineon Technologies
BSM100GB60DLCHOSA1
Infineon Technologies
FZ800R33KF2CNOSA2
Littelfuse Inc.
MG12300WB-BN2MM
Microchip Technology
APTGF30H60T1G
Powerex Inc.

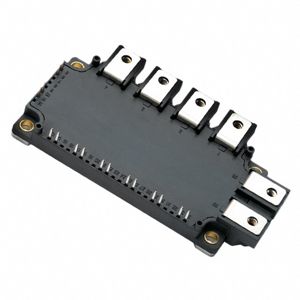

CM100RX-24S
Powerex Inc.

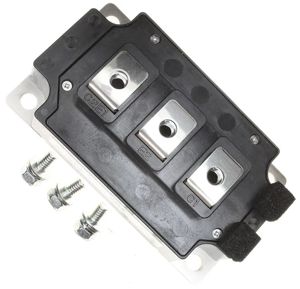

CM300DY-24A
IXYS

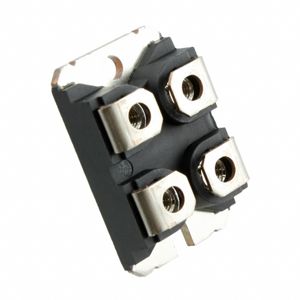

IXGN60N60C2
