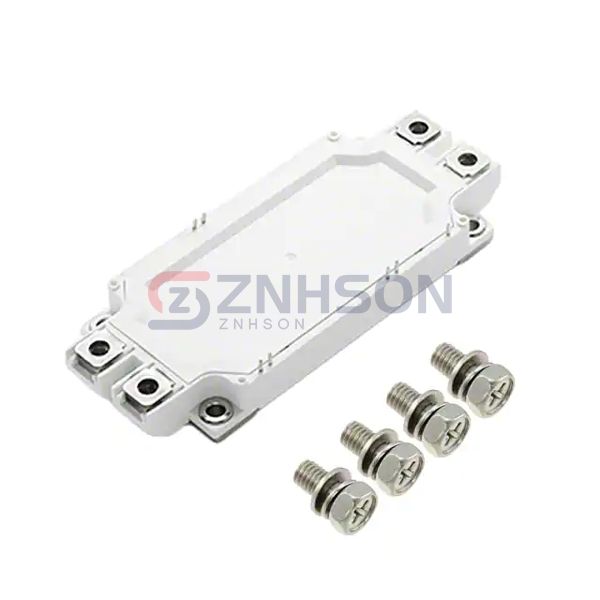

MG12300WB-BN2MM
Littelfuse Inc.
Littelfuse Inc.
IGBT MODULE 1200V 500A 1400W WB
$0.00
Available to order
Reference Price (USD)
1+
$167.29000
10+
$159.87800
25+
$154.58480
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MG12300WB-BN2MM IGBT Module from Littelfuse Inc. delivers superior performance for demanding power control tasks. With features such as short-circuit protection and high-frequency operation, it's suited for solar inverters, industrial automation, and more. Trust Littelfuse Inc. for cutting-edge Discrete Semiconductor Products. Request a sample now!
Specifications
- Product Status: Obsolete
- IGBT Type: Trench Field Stop
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 500 A
- Power - Max: 1400 W
- Vce(on) (Max) @ Vge, Ic: 1.7V @ 15V, 300A (Typ)
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 21 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: WB
