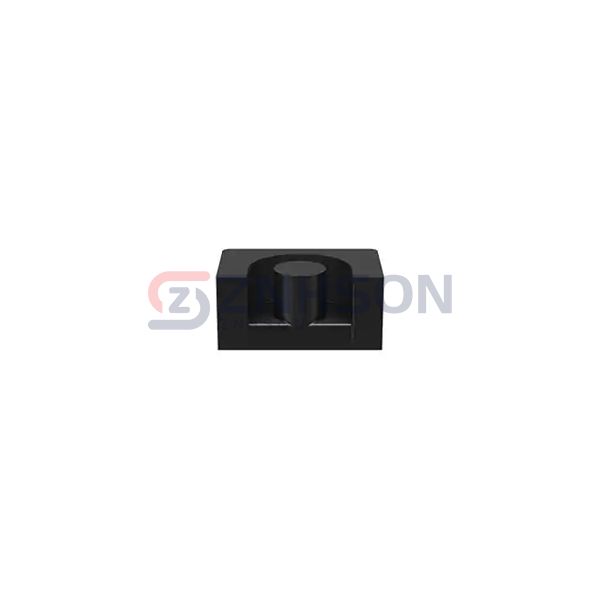

B65843A0250J045
EPCOS - TDK Electronics
EPCOS - TDK Electronics
FERRITE CORE EP 250NH N45 2PCS
$1.02
Available to order
Reference Price (USD)
1,500+
$0.71202
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Streamline your power electronics with EPCOS - TDK Electronics B65843A0250J045 Ferrite Cores, engineered for maximum efficiency and reliability. These cores are crucial in applications like solar inverters, motor drives, and wireless charging systems. Their excellent magnetic characteristics ensure low loss and high performance. Suitable for both commercial and industrial uses, our Ferrite Cores are a smart investment. Get in touch today to discuss your requirements and place an order!
Specifications
- Product Status: Active
- Core Type: EP
- Supplier Device Package: EP 13
- Material: N45
- Diameter: -
- Inductance Factor (Al): 250 nH
- Tolerance: ±5%
- Gap: Gapped
- Effective Permeability (µe): 247
- Initial Permeability (µi): 3800
- Core Factor (ΣI/A) mm-1: 1.24
- Effective Length (le) mm: 24.2
- Effective Area (Ae) mm²: 19.5
- Minimum Core Cross Section (Amin) mm²: 14.9
- Effective Magnetic Volume (Ve) mm³: 472
- Finish: Uncoated
- Height: 0.256" (6.50mm)
- Length: 0.504" (12.80mm)
- Width: 0.354" (9.00mm)
Related Products
EPCOS - TDK Electronics
B66506P0000X195
Ferroxcube
PQ26/20-3C97
EPCOS - TDK Electronics
B66387Q0400K187
EPCOS - TDK Electronics
B62152P0027X030
Ferroxcube
EP13-3C96
Fair-Rite Products Corp.
5943001601

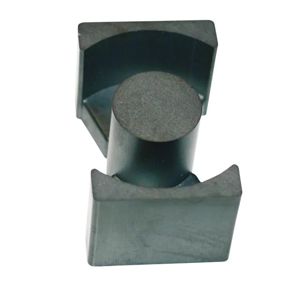

Fair-Rite Products Corp.
6678505021

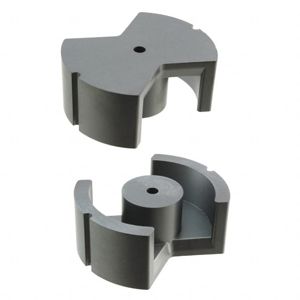

EPCOS - TDK Electronics
B65686A0000R087

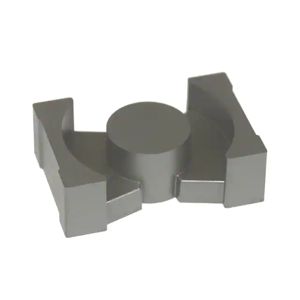

Ferroxcube
