B65686A0000R087
EPCOS - TDK Electronics
EPCOS - TDK Electronics

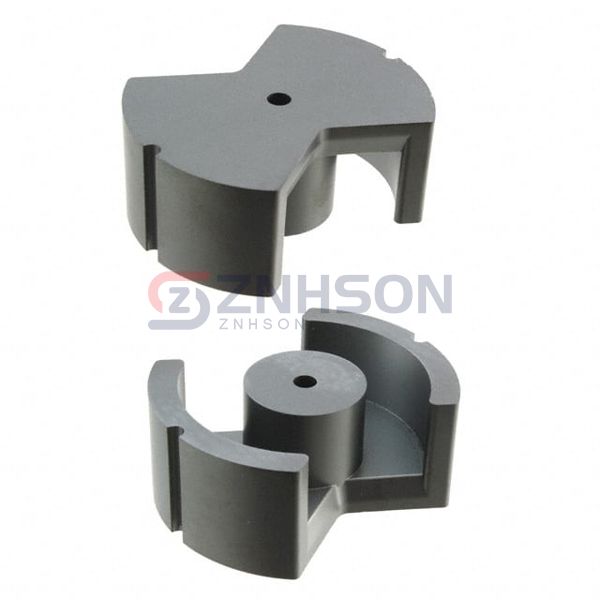

FERRITE CORE PM 10UH N87 2PCS
$102.61
Available to order
Reference Price (USD)
1+
$71.47000
10+
$63.53000
25+
$52.41240
50+
$50.82440
100+
$44.47130
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve optimal power management with EPCOS - TDK Electronics B65686A0000R087 Ferrite Cores, crafted for high-performance energy conversion and filtering. These cores are essential in designing efficient power supplies, RF devices, and noise suppression circuits. With excellent thermal stability and low core loss, they are suitable for harsh operating conditions. Trusted by engineers worldwide for critical applications. Reach out to our team for expert advice and customized solutions!
Specifications
- Product Status: Active
- Core Type: PM
- Supplier Device Package: PM 74 x 59
- Material: N87
- Diameter: 2.913" (74.00mm)
- Inductance Factor (Al): 10 µH
- Tolerance: -20%, +30%
- Gap: Ungapped
- Effective Permeability (µe): 1290
- Initial Permeability (µi): 2200
- Core Factor (ΣI/A) mm-1: 0.162
- Effective Length (le) mm: 128
- Effective Area (Ae) mm²: 790
- Minimum Core Cross Section (Amin) mm²: 630
- Effective Magnetic Volume (Ve) mm³: 101000
- Finish: Uncoated
- Height: 1.161" (29.50mm)
- Length: -
- Width: -
