6678505021
Fair-Rite Products Corp.
Fair-Rite Products Corp.

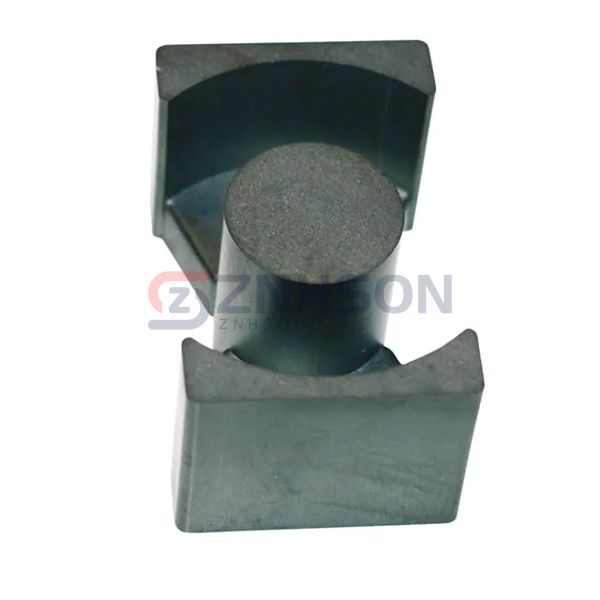

78 PQ CORE SET
$8.39
Available to order
Reference Price (USD)
64+
$3.19484
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your electronic applications with Fair-Rite Products Corp. 6678505021 Ferrite Cores, designed for exceptional magnetic properties and longevity. These cores are widely utilized in DC-DC converters, inductors, and high-frequency transformers. Their superior impedance characteristics make them perfect for suppressing electromagnetic noise. Whether for medical devices or automotive systems, our Ferrite Cores provide reliable solutions. Submit your inquiry today and let us help you find the perfect fit!
Specifications
- Product Status: Active
- Core Type: PQ
- Supplier Device Package: -
- Material: 78
- Diameter: -
- Inductance Factor (Al): -
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): 2300
- Core Factor (ΣI/A) mm-1: 35.9
- Effective Length (le) mm: 114.7
- Effective Area (Ae) mm²: 319
- Minimum Core Cross Section (Amin) mm²: 314.2
- Effective Magnetic Volume (Ve) mm³: 36630
- Finish: Uncoated
- Height: -
- Length: 1.969" (50.00mm)
- Width: 1.260" (32.00mm)
Related Products
EPCOS - TDK Electronics
B65686A0000R087
Ferroxcube
PQ40/40-3C95
EPCOS - TDK Electronics
B65813N0630A048
EPCOS - TDK Electronics
B64290L0615X038
Ferroxcube

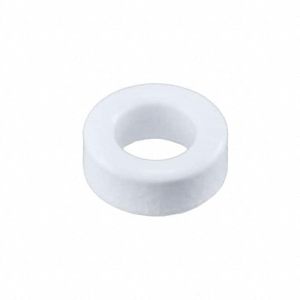

TX14/9/5-3C94
EPCOS - TDK Electronics
B65879B0000R087
EPCOS - TDK Electronics

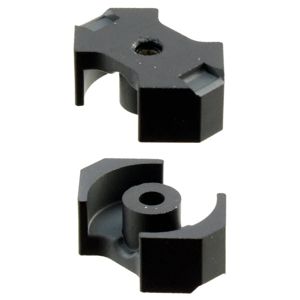

B65805C0160A048
EPCOS - TDK Electronics

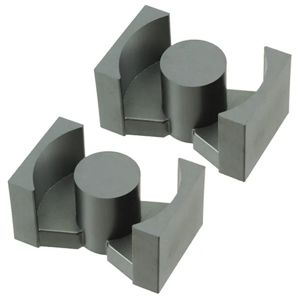

B65881A0000R087
Ferroxcube

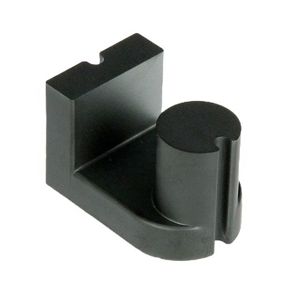

UR55/38/36-3C90
