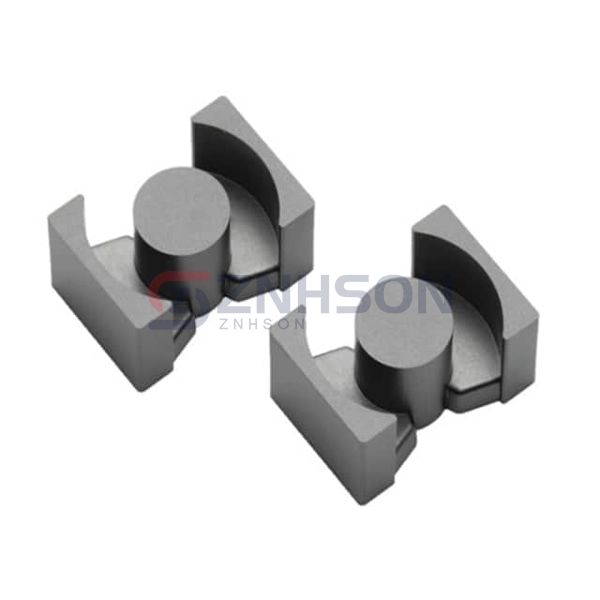

PC95PQ20/16Z-12
TDK Corporation
TDK Corporation
FERRITE CORE PQ 4.48UH 2PC SET
$7.99
Available to order
Reference Price (USD)
1+
$7.99000
10+
$6.80800
25+
$5.18000
50+
$5.03200
100+
$4.44000
250+
$4.14400
500+
$3.84800
1,000+
$3.70000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Invest in reliability with TDK Corporation PC95PQ20/16Z-12 Ferrite Cores, tailored for high-efficiency power transfer and noise reduction. These cores are ideal for use in resonant circuits, pulse transformers, and EMI filters. Their high saturation flux density and minimal eddy current loss make them a top choice for power electronics. From industrial machinery to consumer gadgets, our Ferrite Cores ensure peak performance. Contact us for a detailed quote and technical support!
Specifications
- Product Status: Active
- Core Type: PQ
- Supplier Device Package: PQ 20 x 16
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 4.48 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.61
- Effective Length (le) mm: 37.4
- Effective Area (Ae) mm²: 62
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 2310
- Finish: Uncoated
- Height: 0.638" (16.20mm)
- Length: 0.807" (20.50mm)
- Width: 0.551" (14.00mm)
