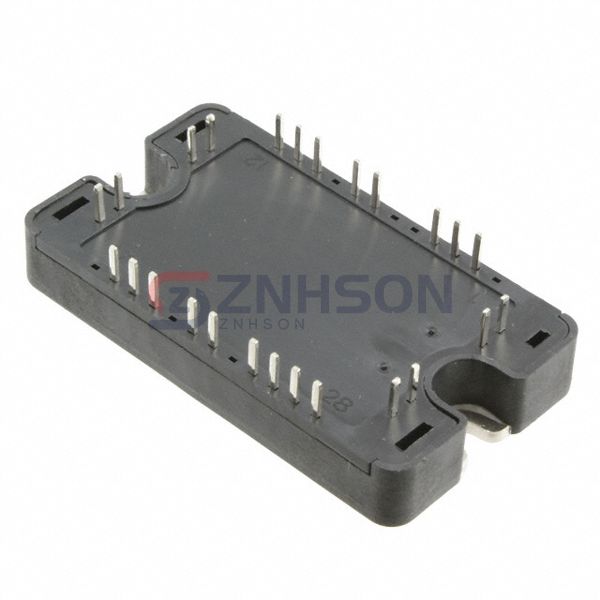

APTGF100A120T3WG
Microsemi Corporation
Microsemi Corporation
IGBT MODULE 1200V 130A 657W SP3
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Microsemi Corporation's APTGF100A120T3WG IGBT Module is engineered for high-power applications requiring stability and longevity. Key features include integrated temperature monitoring and low EMI emissions, perfect for medical devices and traction systems. Choose quality contact us for technical specifications and lead times.
Specifications
- Product Status: Obsolete
- IGBT Type: NPT
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 130 A
- Power - Max: 657 W
- Vce(on) (Max) @ Vge, Ic: 3.7V @ 15V, 100A
- Current - Collector Cutoff (Max): 250 µA
- Input Capacitance (Cies) @ Vce: 6.5 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -
- Mounting Type: Chassis Mount
- Package / Case: SP3
- Supplier Device Package: SP3
Related Products
IXYS
IXEN60N120D1
Powerex Inc.
CM300DX-24S1
Vishay General Semiconductor - Diodes Division
VS-GB75LA60UF
Littelfuse Inc.
MG1250H-XN2MM
Powerex Inc.
CM75DU-12F
Littelfuse Inc.
MG12225WB-BN2MM
Microsemi Corporation
APTGF30TL601G
Littelfuse Inc.
MG12150S-BN2MM
Infineon Technologies

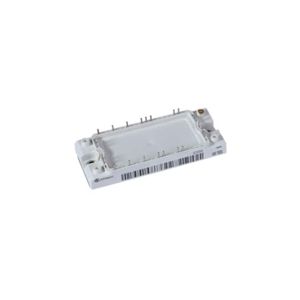

FS100R07N2E4BOSA1
