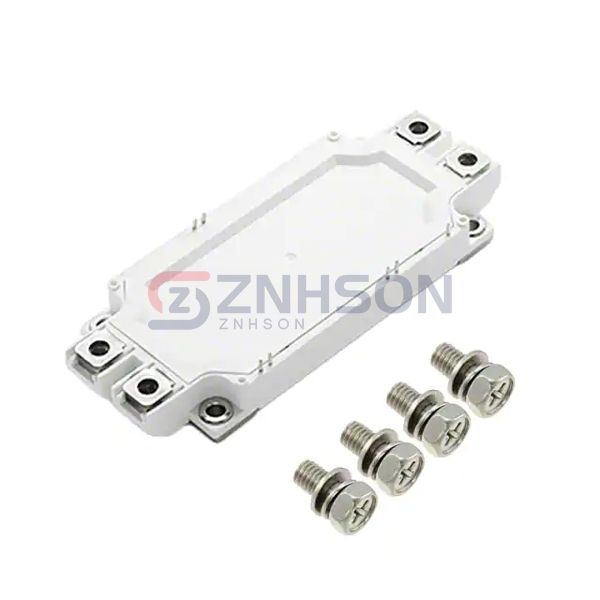

MG12225WB-BN2MM
Littelfuse Inc.
Littelfuse Inc.
IGBT MODULE 1200V 325A 1050W WB
$0.00
Available to order
Reference Price (USD)
1+
$145.36000
10+
$136.60900
25+
$132.23080
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance MG12225WB-BN2MM IGBT Modules from Littelfuse Inc., designed for robust power management in industrial applications. These modules feature advanced thermal management, high voltage tolerance, and efficient switching capabilities, making them ideal for motor drives, renewable energy systems, and power supplies. Upgrade your systems with reliable Littelfuse Inc. technology. Contact us today for a quote!
Specifications
- Product Status: Obsolete
- IGBT Type: Trench Field Stop
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 325 A
- Power - Max: 1050 W
- Vce(on) (Max) @ Vge, Ic: 1.7V @ 15V, 225A (Typ)
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 16 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: WB
