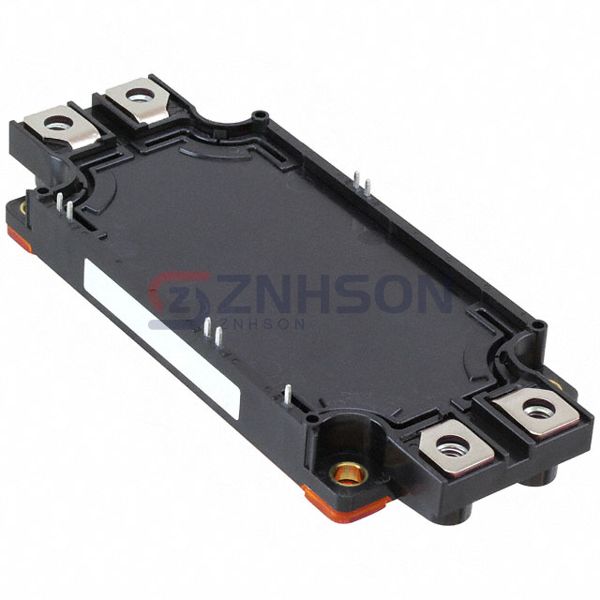

CM300DX-24S1
Powerex Inc.
Powerex Inc.
IGBT MOD 1200V 300A 1850W
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CM300DX-24S1 from Powerex Inc. sets the standard in IGBT Modules with its compact design and high power density. Ideal for servo drives and plasma cutting, it combines fast switching with low conduction losses. Partner with Powerex Inc. for top-tier semiconductor solutions. Get in touch for details!
Specifications
- Product Status: Discontinued at Digi-Key
- IGBT Type: -
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 300 A
- Power - Max: 1850 W
- Vce(on) (Max) @ Vge, Ic: 2.25V @ 15V, 300A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 30 nF @ 10 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: -
- Package / Case: Module
- Supplier Device Package: Module
