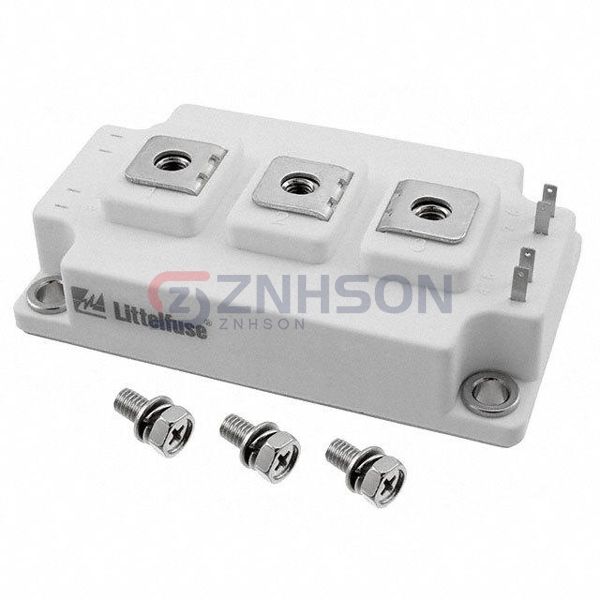

MG12100D-BA1MM
Littelfuse Inc.
Littelfuse Inc.
IGBT MODULE 1200V 160A 1000W D3
$0.00
Available to order
Reference Price (USD)
1+
$115.33000
10+
$108.65600
25+
$103.99000
100+
$98.65680
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize efficiency in your power electronics with the MG12100D-BA1MM IGBT Module by Littelfuse Inc.. Perfect for elevators and conveyor systems, it features low switching losses and high noise immunity. Littelfuse Inc. leads in innovation contact us for expert support and competitive pricing.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 160 A
- Power - Max: 1000 W
- Vce(on) (Max) @ Vge, Ic: 1.8V @ 15V, 100A (Typ)
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 8.58 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: D3
