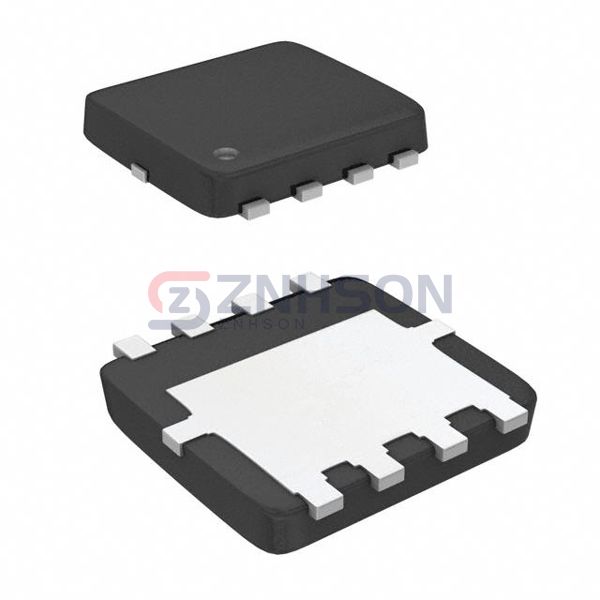

AON7516
Alpha & Omega Semiconductor Inc.
Alpha & Omega Semiconductor Inc.
MOSFET N-CH 30V 20A/30A 8DFN
$0.24
Available to order
Reference Price (USD)
5,000+
$0.22950
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with AON7516, a premium Transistors - FETs, MOSFETs - Single from Alpha & Omega Semiconductor Inc.. As part of the Discrete Semiconductor Products lineup, this MOSFET excels in delivering high-speed switching and low power consumption. Its advanced design reduces heat generation and improves efficiency, suitable for power supplies, motor controls, and LED lighting. Trust AON7516 for consistent quality and long-lasting performance. For bulk orders or custom specifications, reach out to our sales team today!
Specifications
- Product Status: Not For New Designs
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 20A (Ta), 30A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 4.5mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id: 2.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 33 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1229 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 3.1W (Ta), 25W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-DFN-EP (3x3)
- Package / Case: 8-PowerVDFN
