ZXMN3B01FTA
Diodes Incorporated
Diodes Incorporated
MOSFET N-CH 30V 1.7A SOT23-3
$0.58
Available to order
Reference Price (USD)
3,000+
$0.21908
6,000+
$0.20643
15,000+
$0.19378
30,000+
$0.18492
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For cutting-edge Transistors - FETs, MOSFETs - Single solutions, choose ZXMN3B01FTA by Diodes Incorporated. A key player in Discrete Semiconductor Products, this MOSFET boasts low RDS(on), high current capacity, and excellent switching characteristics. Its applications span across telecom infrastructure, medical devices, and consumer electronics. Elevate your designs with ZXMN3B01FTA inquire now for more details!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 1.7A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 150mOhm @ 1.7A, 4.5V
- Vgs(th) (Max) @ Id: 700mV @ 250µA (Min)
- Gate Charge (Qg) (Max) @ Vgs: 2.93 nC @ 4.5 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 258 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 625mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-23-3
- Package / Case: TO-236-3, SC-59, SOT-23-3
Related Products
onsemi
FCPF220N80
Diodes Incorporated
DMN3071LFR4-7
Vishay Siliconix
IRL510STRLPBF
Infineon Technologies
IPB160N04S4LH1ATMA1
Toshiba Semiconductor and Storage
TK8A60W,S4VX
Vishay Siliconix
IRFP048RPBF
Renesas Electronics America Inc
RJK4007DPP-L1#T2
IXYS
IXFH60N60X
Toshiba Semiconductor and Storage

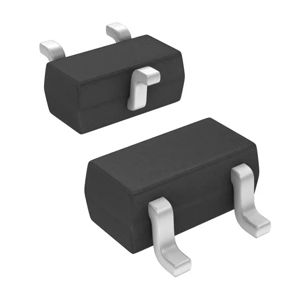

SSM3K72KFS,LXHF
