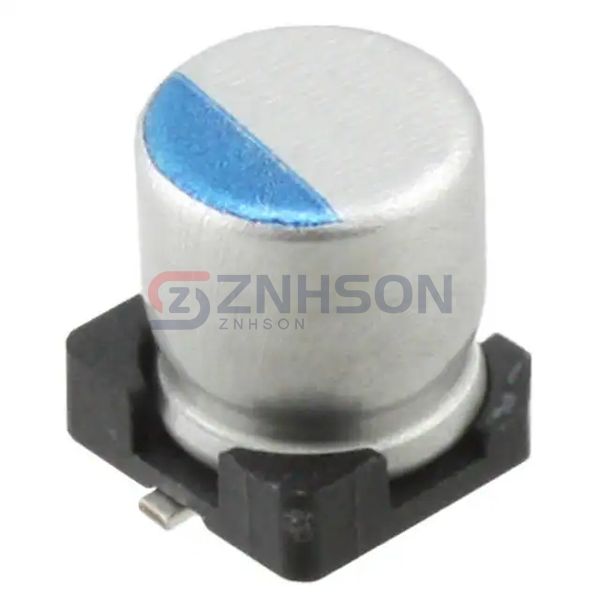

UCL1C331MCL6GS
Nichicon
Nichicon
CAP ALUM 330UF 20% 16V SMD
$1.16
Available to order
Reference Price (USD)
500+
$0.39042
1,000+
$0.33620
2,500+
$0.31450
5,000+
$0.29824
12,500+
$0.29498
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic designs with UCL1C331MCL6GS Aluminum Electrolytic Capacitors, proudly manufactured by Nichicon. With features like high temperature resistance, long service life, and minimal ESR, these capacitors are ideal for inverters, converters, and consumer electronics. UCL1C331MCL6GS guarantees top-tier performance and durability. Contact us today to discuss your needs and secure your supply.
Specifications
- Product Status: Active
- Capacitance: 330 µF
- Tolerance: ±20%
- Voltage - Rated: 16 V
- ESR (Equivalent Series Resistance): -
- Lifetime @ Temp.: 2000 Hrs @ 105°C
- Operating Temperature: -55°C ~ 105°C
- Polarization: Polar
- Ratings: -
- Applications: General Purpose
- Ripple Current @ Low Frequency: 425 mA @ 120 Hz
- Ripple Current @ High Frequency: 850 mA @ 100 kHz
- Impedance: 100 mOhms
- Lead Spacing: -
- Size / Dimension: 0.394" Dia (10.00mm)
- Height - Seated (Max): 0.303" (7.70mm)
- Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
- Mounting Type: Surface Mount
- Package / Case: Radial, Can - SMD
