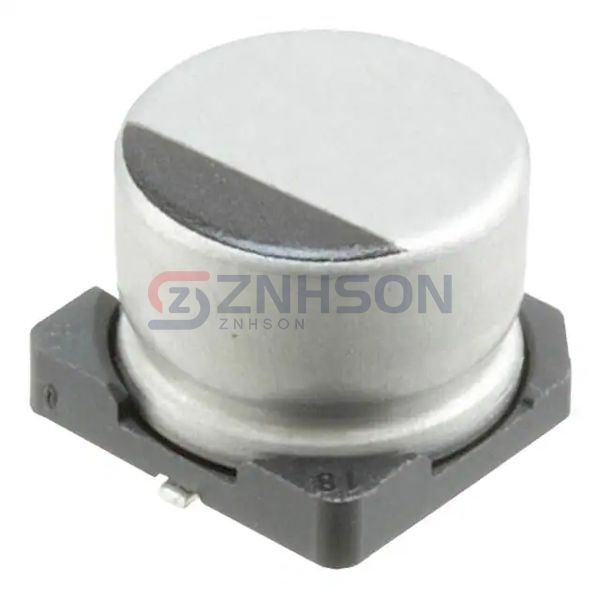

UCD1J220MCL6GS
Nichicon
Nichicon
CAP ALUM 22UF 20% 63V SMD
$0.56
Available to order
Reference Price (USD)
1,000+
$0.14586
2,000+
$0.13728
5,000+
$0.12870
10,000+
$0.12012
25,000+
$0.11669
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic projects with UCD1J220MCL6GS Aluminum Electrolytic Capacitors by Nichicon. Engineered for durability and efficiency, these capacitors offer excellent capacitance stability, wide temperature range, and compact design. Perfect for consumer electronics, LED lighting, and telecommunications, UCD1J220MCL6GS ensures optimal performance in demanding environments. Ready to enhance your designs? Request a sample or inquire about bulk pricing now!
Specifications
- Product Status: Not For New Designs
- Capacitance: 22 µF
- Tolerance: ±20%
- Voltage - Rated: 63 V
- ESR (Equivalent Series Resistance): -
- Lifetime @ Temp.: 2000 Hrs @ 105°C
- Operating Temperature: -55°C ~ 105°C
- Polarization: Polar
- Ratings: AEC-Q200
- Applications: Automotive
- Ripple Current @ Low Frequency: 60 mA @ 120 Hz
- Ripple Current @ High Frequency: 120 mA @ 100 kHz
- Impedance: 1.2 Ohms
- Lead Spacing: -
- Size / Dimension: 0.315" Dia (8.00mm)
- Height - Seated (Max): 0.256" (6.50mm)
- Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
- Mounting Type: Surface Mount
- Package / Case: Radial, Can - SMD
