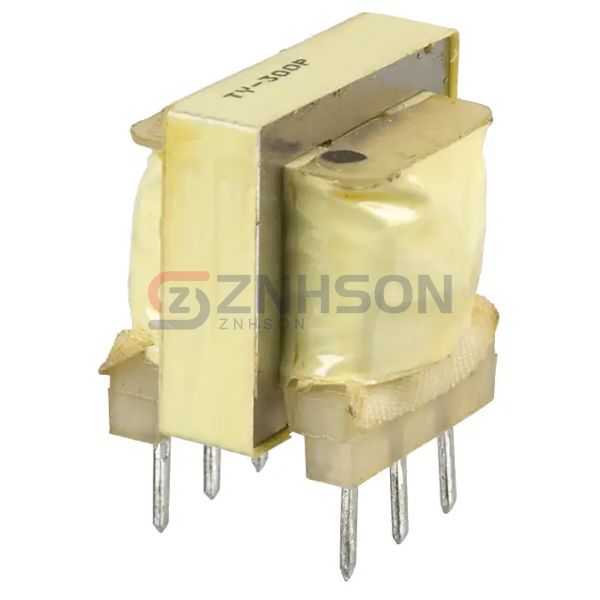

TY-300P
Triad Magnetics
Triad Magnetics
TRANSF 600 OHM 0MA DC TEL HYBRID
$7.10
Available to order
Reference Price (USD)
1+
$6.57000
10+
$4.98900
25+
$4.85800
50+
$4.46420
100+
$4.20160
250+
$4.07032
500+
$3.93900
1,000+
$3.80770
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Transform your audio applications with Triad Magnetics TY-300P Audio Transformers, featuring cutting-edge technology and reliable performance. These transformers are essential for maintaining sound quality in various setups, from home theaters to professional studios. Trust Triad Magnetics to deliver components that make a difference. Request a quote now and enhance your audio systems.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:2.48
- Impedance - Primary (Ohms): 600
- Impedance - Secondary (Ohms): 600/600
- DC Resistance (DCR) - Primary: 172Ohm
- DC Resistance (DCR) - Secondary: 66Ohm, 66Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 300Hz ~ 3.5kHz
- Frequency Response: -
- Voltage - Isolation: 1500VAC
- Insertion Loss: 0.8dB Typ
- Return Loss: 30dB Typ
- Power Level: -45dB ~ 7dB
- Operating Temperature: -20°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.812" L x 0.700" W (20.62mm x 17.78mm)
- Height - Seated (Max): 0.740" (18.80mm)
- Termination Style: PC Pin
