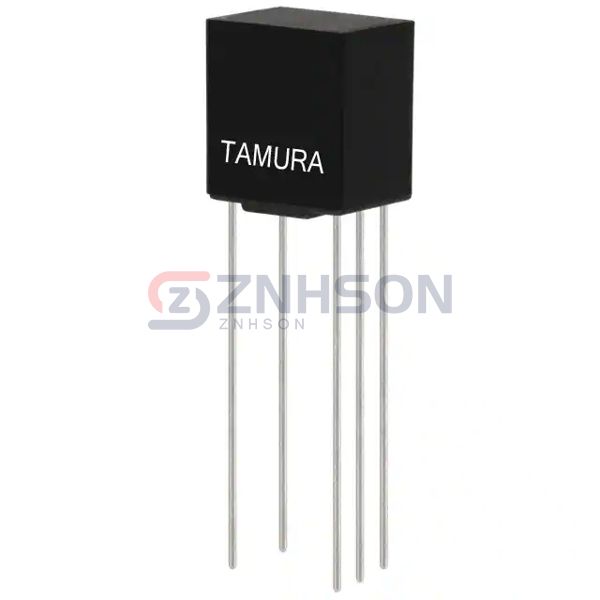

MET-24
Tamura
Tamura
TRANSFORMER 1.5KCT:600 3.0MADC
$7.56
Available to order
Reference Price (USD)
550+
$7.82375
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your audio projects with Tamura MET-24 Audio Transformers, known for their robust construction and exceptional sound quality. These transformers are ideal for a wide range of applications, from PA systems to musical instruments, providing reliable and distortion-free performance. Count on Tamura for excellence in every component. Contact us now to discuss your requirements.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1.58:1
- Impedance - Primary (Ohms): 1.5kCT
- Impedance - Secondary (Ohms): 600
- DC Resistance (DCR) - Primary: 160Ohm
- DC Resistance (DCR) - Secondary: 95Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 300Hz ~ 100kHz
- Frequency Response: ±2dB
- Voltage - Isolation: 500VRMS @ 1 Minute
- Insertion Loss: 2dB Max @ 1kHz
- Return Loss: -
- Power Level: 50mW
- Operating Temperature: -20°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.409" L x 0.310" W (10.40mm x 7.87mm)
- Height - Seated (Max): 0.465" (11.80mm)
- Termination Style: PC Pin
