TSW-137-08-T-S-RA
Samtec Inc.
Samtec Inc.

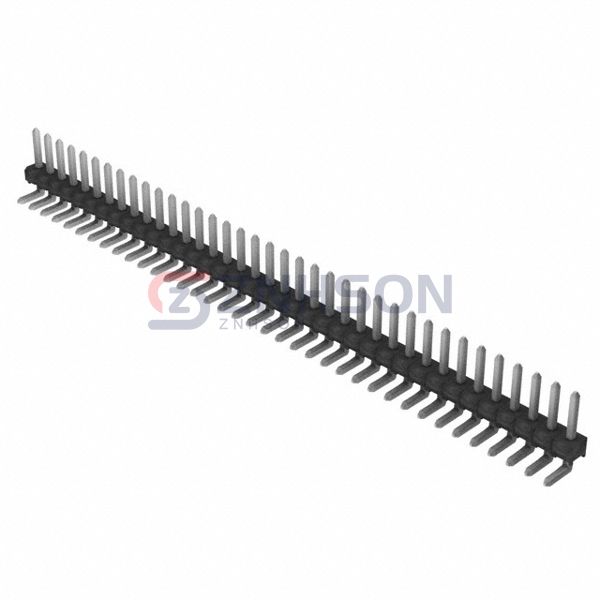

CONN HEADER R/A 37POS 2.54MM
$2.28
Available to order
Reference Price (USD)
1+
$2.07000
10+
$1.88000
25+
$1.76480
50+
$1.68800
100+
$1.61120
250+
$1.45772
500+
$1.34266
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure seamless connectivity with TSW-137-08-T-S-RA Samtec Inc. Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 37
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: -
- Insulation Height: 0.119" (3.02mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
