GEC26SBSN-M89
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER SMD R/A 26POS 2.54MM
$3.08
Available to order
Reference Price (USD)
1+
$3.08000
10+
$2.95400
25+
$2.70760
50+
$2.58440
100+
$2.46130
250+
$2.15368
500+
$2.09214
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The GEC26SBSN-M89 Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 26
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.140" (3.56mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA9T), Nylon 9T
- Features: -
- Operating Temperature: -65°C ~ 150°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Harwin Inc.
M22-5320305P
TE Connectivity AMP Connectors
102617-4
Amphenol ICC (Commercial Products)
G874D081202CEU
Hirose Electric Co Ltd
MDF6-8DP-3.5DSA(23)
Samtec Inc.
TSW-105-07-T-T-LL
Amphenol ICC (FCI)
77313-427-34LF

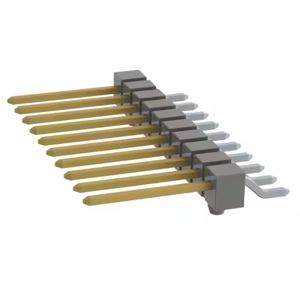

Samtec Inc.
TSM-110-03-F-SH-A-K-TR

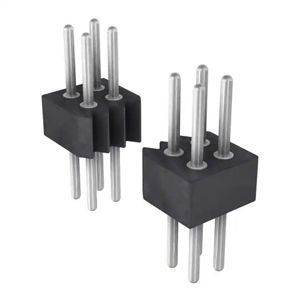

Preci-Dip
852-80-054-10-001101

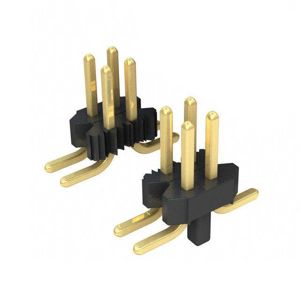

Amphenol ICC (FCI)
