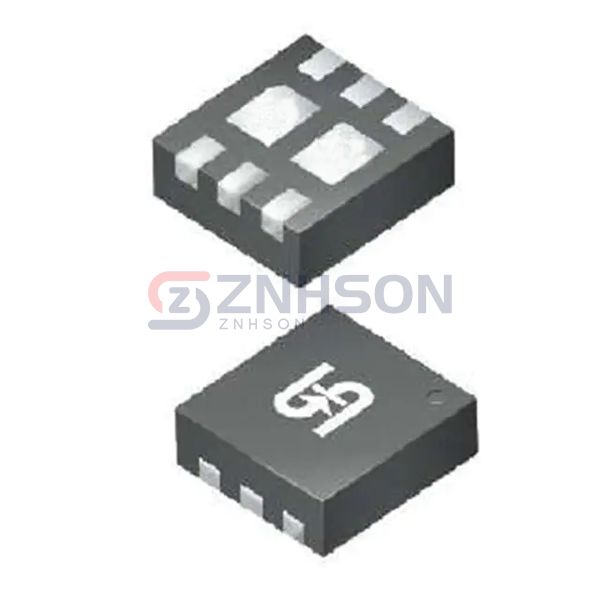

TSM301K12CQ RFG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
MOSFET P-CH 20V 4.5A 6TDFN
$0.86
Available to order
Reference Price (USD)
3,000+
$0.20987
6,000+
$0.19633
15,000+
$0.18956
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance TSM301K12CQ RFG from Taiwan Semiconductor Corporation, a leading solution in the Discrete Semiconductor Products category. Our Transistors - FETs, MOSFETs - Single are designed for efficiency and reliability, making them ideal for various electronic applications. These components feature low on-resistance, fast switching speeds, and excellent thermal performance, ensuring optimal functionality in power management and amplification circuits. Commonly used in automotive, industrial, and consumer electronics, TSM301K12CQ RFG delivers consistent performance under demanding conditions. Interested in learning more? Contact us today for a detailed quote and technical support!
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 4.5A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 94mOhm @ 2.8A, 4.5V
- Vgs(th) (Max) @ Id: 500mV @ 250µA (Min)
- Gate Charge (Qg) (Max) @ Vgs: 4.5 nC @ 4.5 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 5.2 pF @ 6 V
- FET Feature: -
- Power Dissipation (Max): 6.5W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-TDFN (2x2)
- Package / Case: 6-VDFN Exposed Pad
