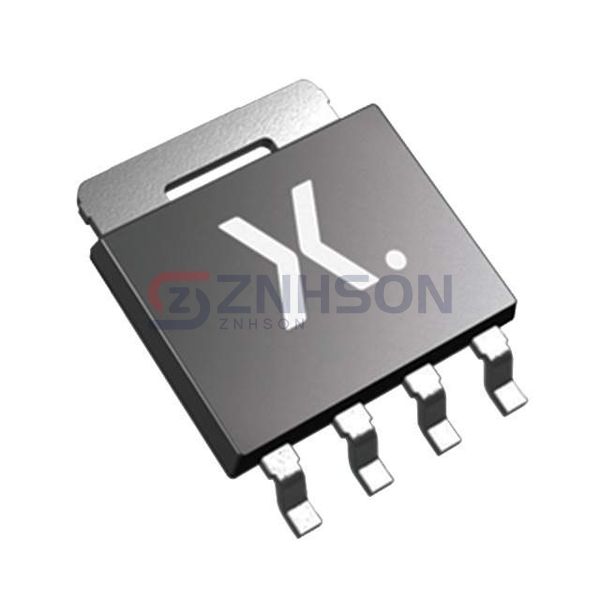

PSMN1R7-40YLDX
Nexperia USA Inc.
Nexperia USA Inc.
MOSFET N-CH 40V 200A LFPAK56
$2.13
Available to order
Reference Price (USD)
1+
$2.13000
500+
$2.1087
1000+
$2.0874
1500+
$2.0661
2000+
$2.0448
2500+
$2.0235
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover PSMN1R7-40YLDX, a versatile Transistors - FETs, MOSFETs - Single solution from Nexperia USA Inc., a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 200A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 1.8mOhm @ 25A, 10V
- Vgs(th) (Max) @ Id: 2.05V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 109 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 7966 pF @ 20 V
- FET Feature: Schottky Diode (Body)
- Power Dissipation (Max): 194W (Ta)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: LFPAK56, Power-SO8
- Package / Case: SC-100, SOT-669
