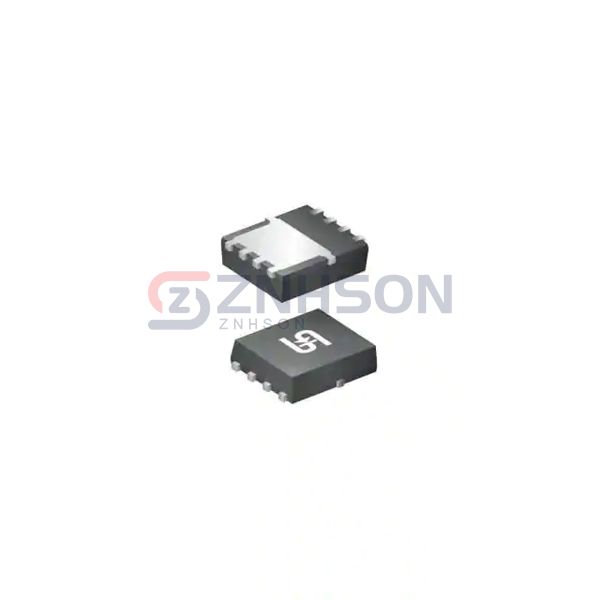

TSM056NH04CV RGG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
40V, 54A, SINGLE N-CHANNEL POWER
$3.04
Available to order
Reference Price (USD)
1+
$3.04000
500+
$3.0096
1000+
$2.9792
1500+
$2.9488
2000+
$2.9184
2500+
$2.888
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
TSM056NH04CV RGG by Taiwan Semiconductor Corporation is a standout in the Discrete Semiconductor Products market, specifically for Transistors - FETs, MOSFETs - Single applications. Engineered for precision, this MOSFET offers exceptional gate control, low leakage current, and high power density. Ideal for use in audio amplifiers, DC-DC converters, and battery management systems, TSM056NH04CV RGG ensures top-tier performance. Don t miss out on this versatile component request a sample or quote now!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 16A (Ta), 54A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 7V, 10V
- Rds On (Max) @ Id, Vgs: 5.6mOhm @ 27A, 10V
- Vgs(th) (Max) @ Id: 3.6V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 29 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1828 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 34W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PDFN (3.1x3.1)
- Package / Case: 8-PowerWDFN
