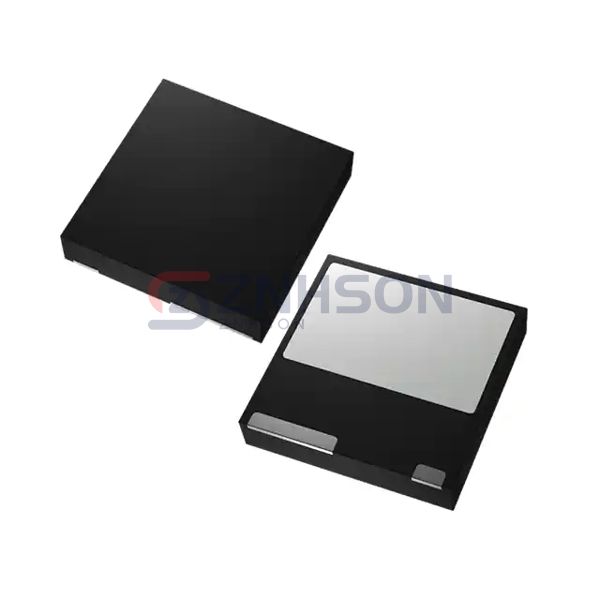

TPH3206LS
Transphorm
Transphorm
GANFET N-CH 600V 17A PQFN
$10.85
Available to order
Reference Price (USD)
1+
$11.40000
10+
$10.26000
60+
$9.34800
120+
$8.43600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover TPH3206LS, a versatile Transistors - FETs, MOSFETs - Single solution from Transphorm, a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: GaNFET (Gallium Nitride)
- Drain to Source Voltage (Vdss): 600 V
- Current - Continuous Drain (Id) @ 25°C: 17A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 180mOhm @ 11A, 8V
- Vgs(th) (Max) @ Id: 2.6V @ 500µA
- Gate Charge (Qg) (Max) @ Vgs: 9.3 nC @ 4.5 V
- Vgs (Max): ±18V
- Input Capacitance (Ciss) (Max) @ Vds: 760 pF @ 480 V
- FET Feature: -
- Power Dissipation (Max): 96W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PQFN (8x8)
- Package / Case: 3-PowerDFN
Related Products
Infineon Technologies
BSZ0909NSATMA1
Infineon Technologies
IPD90R1K2C3ATMA1
Renesas Electronics America Inc
RJK0395DPA-00#J53
IXYS
IXTX22N100L
Microchip Technology
APT48M80L
Texas Instruments
CSD17381F4T
Vishay Siliconix
SI3457CDV-T1-E3
Nexperia USA Inc.

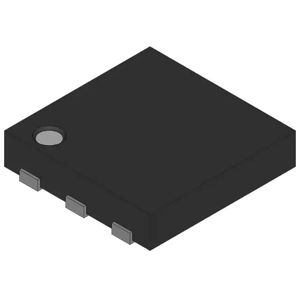

PMPB20XNEA,115
