TLP2761F(D4,F)
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
OPTOCOUPLER TRANS
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality Toshiba Semiconductor and Storage TLP2761F(D4,F) Optoisolators - Logic Output, designed for reliable signal isolation in various electronic applications. These optoisolators feature excellent noise immunity, high-speed performance, and robust construction, making them ideal for industrial automation, telecommunications, and medical equipment. Ensure safe and efficient signal transmission with our premium isolators. Contact us today for a quote or more information!
Specifications
- Product Status: Obsolete
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 20kV/µs
- Input Type: AC, DC
- Output Type: Push-Pull, Totem Pole
- Current - Output / Channel: 10 mA
- Data Rate: 15MBd
- Propagation Delay tpLH / tpHL (Max): 80ns, 80ns
- Rise / Fall Time (Typ): 3ns, 3ns
- Voltage - Forward (Vf) (Typ): 1.5V
- Current - DC Forward (If) (Max): 10mA
- Voltage - Supply: 2.7V ~ 5.5V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 6-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 6-SO
Related Products
CEL

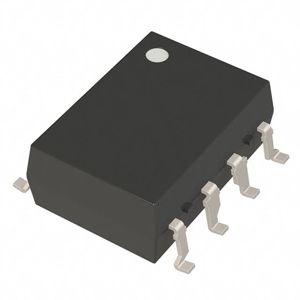

PS9613L-E3-A
CEL
PS9113-V-A
onsemi
H11N2M
Vishay Semiconductor Opto Division
SFH6719
CEL

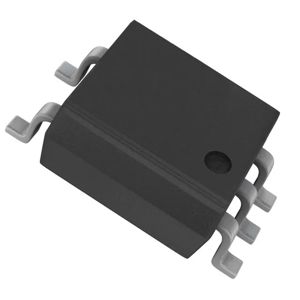

PS9117-V-A
Broadcom Limited
ACSL-6210-50R
CEL
PS9613L
Vishay Semiconductor Opto Division

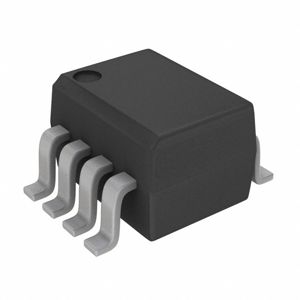

SFH6720T
