TLP2200(TP1,F)
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
OPTOISO 2.5KV TRI-STATE 8SMD
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with Toshiba Semiconductor and Storage TLP2200(TP1,F) Optoisolators - Logic Output. These isolators deliver high-speed, reliable signal isolation with low power consumption and excellent thermal stability, ideal for applications in HVAC, lighting controls, and security systems. Trust Toshiba Semiconductor and Storage for innovative solutions. Send us your requirements today!
Specifications
- Product Status: Obsolete
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 2500Vrms
- Common Mode Transient Immunity (Min): 1kV/µs
- Input Type: DC
- Output Type: Tri-State
- Current - Output / Channel: 25 mA
- Data Rate: 2.5MBd
- Propagation Delay tpLH / tpHL (Max): 400ns, 400ns
- Rise / Fall Time (Typ): 35ns, 20ns
- Voltage - Forward (Vf) (Typ): 1.55V
- Current - DC Forward (If) (Max): 10mA
- Voltage - Supply: 4.5V ~ 20V
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 8-SMD, Gull Wing
- Supplier Device Package: 8-SMD
Related Products
Broadcom Limited
HCPL-263N#320
CEL
PS9115-F4-A
onsemi
H11N3S
onsemi
74OL6000
onsemi

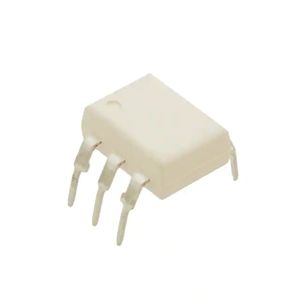

74OL6000W
CEL

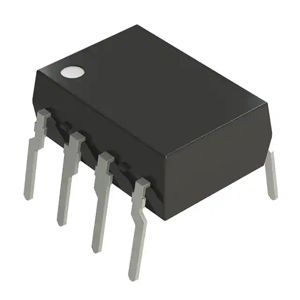

PS9617-A
