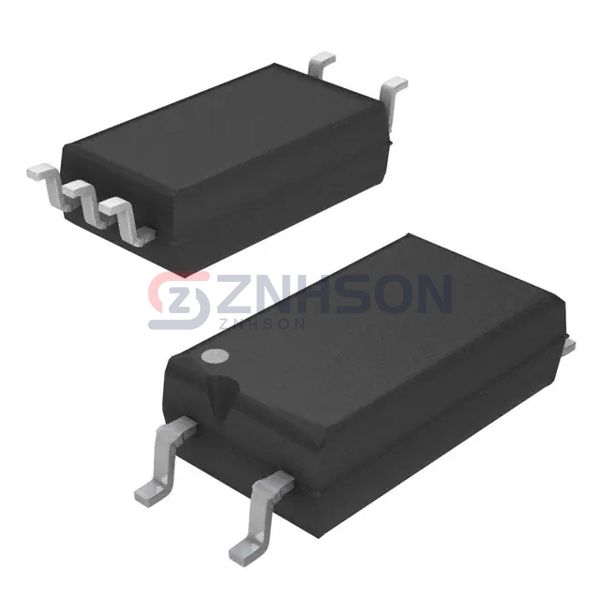

TCLT1119
Vishay Semiconductor Opto Division
Vishay Semiconductor Opto Division
OPTOISO 5KV TRANS W/BASE SOP-6L5
$0.26
Available to order
Reference Price (USD)
3,000+
$0.25200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance circuit safety with TCLT1119 Optoisolators from Vishay Semiconductor Opto Division, featuring Photovoltaic Output for efficient signal transfer. Ideal for use in renewable energy systems, automotive electronics, and industrial machinery, these isolators provide excellent electrical isolation and noise reduction. Their compact design and high reliability make them a top choice for engineers worldwide. Ready to secure your components? Request a quote today and experience the Vishay Semiconductor Opto Division difference!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 200% @ 5mA
- Current Transfer Ratio (Max): 400% @ 5mA
- Turn On / Turn Off Time (Typ): 6µs, 5µs
- Rise / Fall Time (Typ): 3µs, 4.7µs
- Input Type: DC
- Output Type: Transistor with Base
- Voltage - Output (Max): 70V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.25V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 300mV
- Operating Temperature: -55°C ~ 110°C
- Mounting Type: Surface Mount
- Package / Case: 6-SOIC (0.295", 7.50mm Width), 5 Leads
- Supplier Device Package: 6-SOP, 5 Pin
