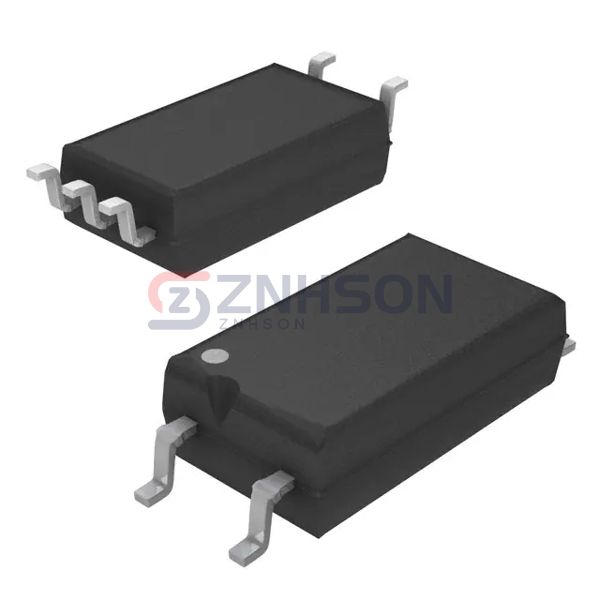

TCLT1113
Vishay Semiconductor Opto Division
Vishay Semiconductor Opto Division
OPTOISO 5KV TRANS W/BASE SOP-6L5
$0.83
Available to order
Reference Price (USD)
3,000+
$0.25200
6,000+
$0.24300
15,000+
$0.23940
30,000+
$0.23400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your system's efficiency with TCLT1113 Optoisolators by Vishay Semiconductor Opto Division, designed for Photovoltaic Output applications. These isolators are perfect for isolating digital signals, protecting microcontrollers, and ensuring safe operation in high-voltage environments. Suitable for consumer electronics, aerospace, and defense applications, they deliver consistent performance under extreme conditions. Get started today contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 100% @ 10mA
- Current Transfer Ratio (Max): 200% @ 10mA
- Turn On / Turn Off Time (Typ): 6µs, 5µs
- Rise / Fall Time (Typ): 3µs, 4.7µs
- Input Type: DC
- Output Type: Transistor with Base
- Voltage - Output (Max): 70V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.25V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 300mV
- Operating Temperature: -55°C ~ 110°C
- Mounting Type: Surface Mount
- Package / Case: 6-SOIC (0.295", 7.50mm Width), 5 Leads
- Supplier Device Package: 6-SOP, 5 Pin
