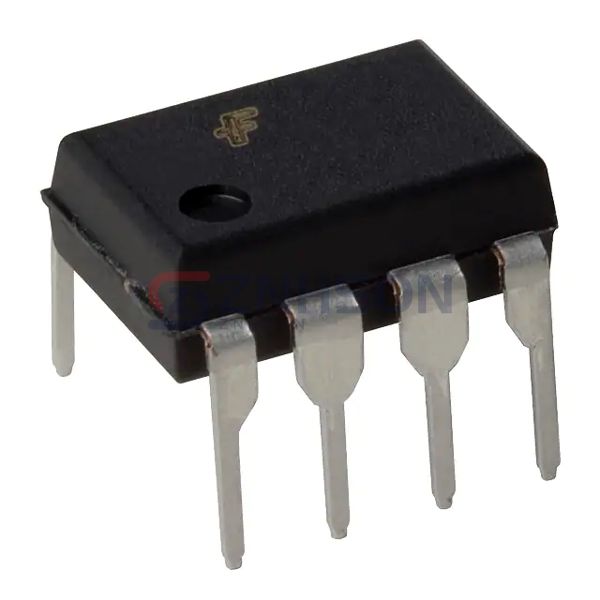

6N135M
onsemi
onsemi
OPTOISO 5KV TRANS W/BASE 8DIP
$1.87
Available to order
Reference Price (USD)
1+
$1.42000
10+
$1.15100
100+
$0.79700
500+
$0.60214
1,000+
$0.49588
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronics with onsemi's 6N135M Optoisolators - Transistor, Photovoltaic Output, offering superior isolation and signal transmission. These components are perfect for applications requiring high voltage separation, such as power supplies, motor controls, and PLC systems. With robust construction and long-term durability, our optoisolators ensure seamless performance in demanding environments. Interested in learning more? Submit your inquiry now and let our experts assist you!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 7% @ 16mA
- Current Transfer Ratio (Max): 50% @ 16mA
- Turn On / Turn Off Time (Typ): 230ns, 450ns
- Rise / Fall Time (Typ): -
- Input Type: DC
- Output Type: Transistor with Base
- Voltage - Output (Max): 20V
- Current - Output / Channel: 8mA
- Voltage - Forward (Vf) (Typ): 1.45V
- Current - DC Forward (If) (Max): 25 mA
- Vce Saturation (Max): -
- Operating Temperature: -40°C ~ 100°C
- Mounting Type: Through Hole
- Package / Case: 8-DIP (0.300", 7.62mm)
- Supplier Device Package: 8-DIP
Related Products
Vishay Semiconductor Opto Division
VOS618A-3X001T
Isocom Components 2004 LTD
ISQ74X
Broadcom Limited
6N136-500E
Everlight Electronics Co Ltd
4N35S1(TA)
Renesas Electronics America Inc
PS2533L-1-V-A
Fairchild Semiconductor
FOD2711ATV
Broadcom Limited
HCPL-4534
Everlight Electronics Co Ltd
H11B1S1(TB)
Vishay Semiconductor Opto Division

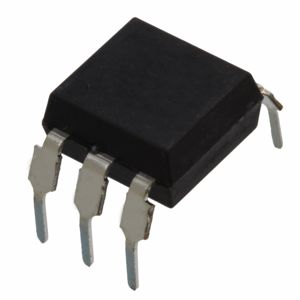

SFH600-3X006
