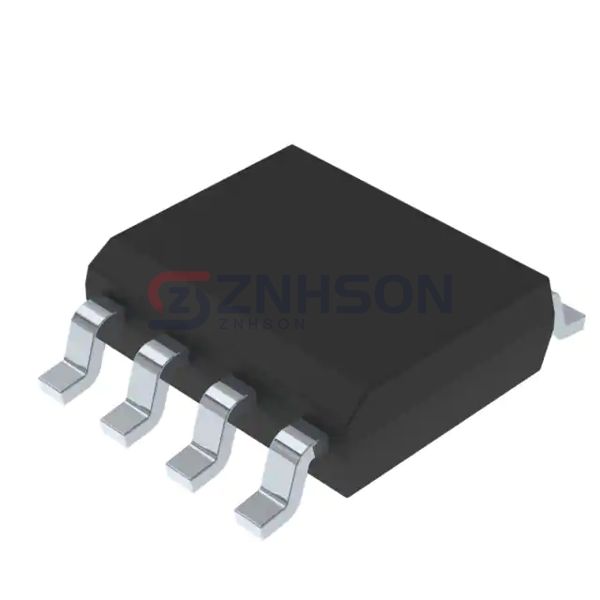

STS25NH3LL
STMicroelectronics
STMicroelectronics
MOSFET N-CH 30V 25A 8SO
$0.00
Available to order
Reference Price (USD)
2,500+
$0.81675
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For cutting-edge Transistors - FETs, MOSFETs - Single solutions, choose STS25NH3LL by STMicroelectronics. A key player in Discrete Semiconductor Products, this MOSFET boasts low RDS(on), high current capacity, and excellent switching characteristics. Its applications span across telecom infrastructure, medical devices, and consumer electronics. Elevate your designs with STS25NH3LL inquire now for more details!
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 25A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 3.5mOhm @ 12.5A, 10V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 40 nC @ 4.5 V
- Vgs (Max): ±18V
- Input Capacitance (Ciss) (Max) @ Vds: 4450 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 3.2W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-SOIC
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
