STL11N4LLF5

STMicroelectronics
STL11N4LLF5 Preview
STMicroelectronics
MOSFET N-CH 40V 11A POWERFLAT
$1.59
Available to order
Reference Price (USD)
1+
$1.59000
500+
$1.5741
1000+
$1.5582
1500+
$1.5423
2000+
$1.5264
2500+
$1.5105
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Obsolete
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 40 V
  • Current - Continuous Drain (Id) @ 25°C: 11A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
  • Rds On (Max) @ Id, Vgs: 9.7mOhm @ 5.5A, 10V
  • Vgs(th) (Max) @ Id: 2.5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 12.9 nC @ 4.5 V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 1570 pF @ 25 V
  • FET Feature: -
  • Power Dissipation (Max): 2.9W (Ta), 50W (Tc)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: PowerFlat™ (3.3x3.3)
  • Package / Case: 8-PowerVDFN

Related Products

Fairchild Semiconductor

FDP8030L

Alpha & Omega Semiconductor Inc.

AON7292

Diodes Incorporated

DMN65D8LT-13

Infineon Technologies

IPI80N04S3-06

STMicroelectronics

STF16N65M2

Diodes Incorporated

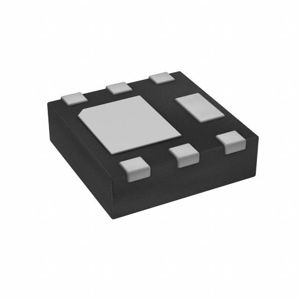

DMN3021LFDF-13
