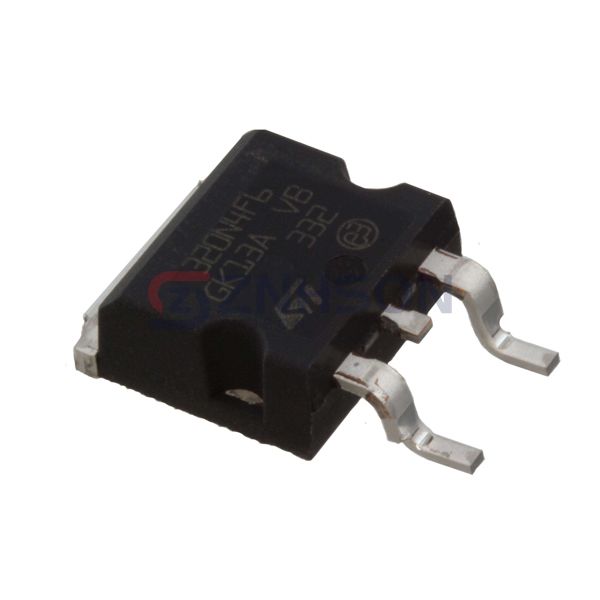

STH320N4F6-2
STMicroelectronics
STMicroelectronics
MOSFET N-CH 40V 200A H2PAK
$5.25
Available to order
Reference Price (USD)
1+
$5.25000
500+
$5.1975
1000+
$5.145
1500+
$5.0925
2000+
$5.04
2500+
$4.9875
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover STH320N4F6-2, a versatile Transistors - FETs, MOSFETs - Single solution from STMicroelectronics, a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 200A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 1.3mOhm @ 80A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 240 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 13800 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 300W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: H²PAK
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab) Variant
