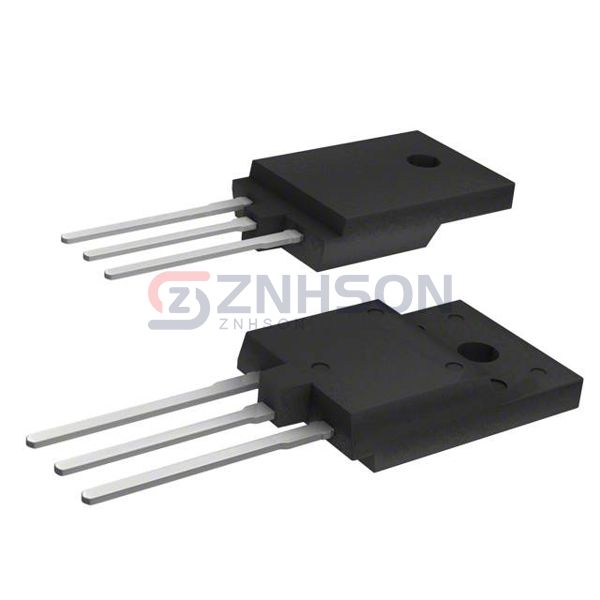

STGFW40V60DF
STMicroelectronics
STMicroelectronics
IGBT 600V 80A 62.5W TO-3PF
$0.00
Available to order
Reference Price (USD)
1+
$5.20000
30+
$4.41800
120+
$3.82883
510+
$3.25941
1,020+
$2.74890
2,520+
$2.61800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize energy efficiency with STGFW40V60DF Single IGBTs by STMicroelectronics, a trusted name in discrete semiconductors. Suitable for solar inverters, motor controllers, and more, these transistors feature low conduction loss and high switching frequency. Their robust design ensures long-term performance even in harsh environments. Choose STGFW40V60DF for your next project and experience the STMicroelectronics difference. Submit your inquiry today for expert assistance!
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 80 A
- Current - Collector Pulsed (Icm): 160 A
- Vce(on) (Max) @ Vge, Ic: 2.3V @ 15V, 40A
- Power - Max: 62.5 W
- Switching Energy: 456µJ (on), 411µJ (off)
- Input Type: Standard
- Gate Charge: 226 nC
- Td (on/off) @ 25°C: 52ns/208ns
- Test Condition: 400V, 40A, 10Ohm, 15V
- Reverse Recovery Time (trr): 41 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3PFM, SC-93-3
- Supplier Device Package: TO-3PF-3
