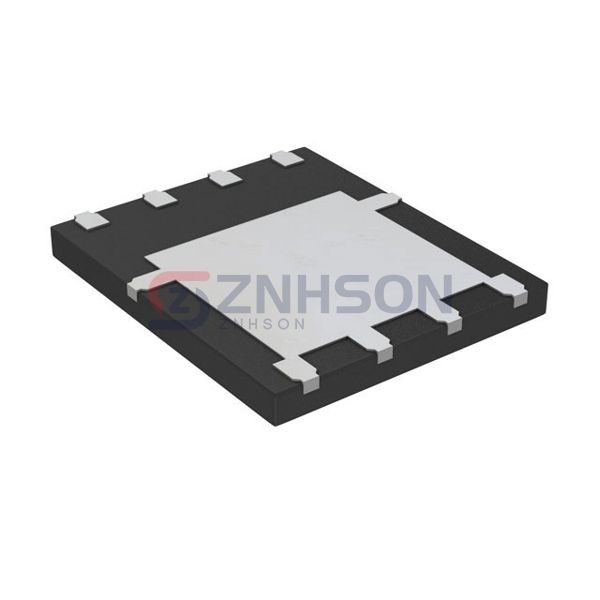

SIDR390DP-T1-GE3
Vishay Siliconix
Vishay Siliconix
MOSFET N-CH 30V 69.9A/100A PPAK
$2.61
Available to order
Reference Price (USD)
3,000+
$1.27323
6,000+
$1.22905
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with SIDR390DP-T1-GE3 by Vishay Siliconix, a top-tier choice in Discrete Semiconductor Products. Specifically crafted for Transistors - FETs, MOSFETs - Single applications, this product offers superior power handling and energy efficiency. Key features include high voltage tolerance, minimal power loss, and robust durability, making it perfect for switching and amplification tasks. Whether for industrial machinery, renewable energy systems, or portable devices, SIDR390DP-T1-GE3 ensures reliable operation. Ready to integrate this component into your project? Submit an inquiry now for pricing and availability!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 69.9A (Ta), 100A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 0.8mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id: 2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 153 nC @ 10 V
- Vgs (Max): +20V, -16V
- Input Capacitance (Ciss) (Max) @ Vds: 10180 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 6.25W (Ta), 125W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PowerPAK® SO-8DC
- Package / Case: PowerPAK® SO-8
