PJP4NA70_T0_00001
Panjit International Inc.
Panjit International Inc.
700V N-CHANNEL MOSFET
$1.24
Available to order
Reference Price (USD)
1+
$1.24000
500+
$1.2276
1000+
$1.2152
1500+
$1.2028
2000+
$1.1904
2500+
$1.178
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover PJP4NA70_T0_00001, a versatile Transistors - FETs, MOSFETs - Single solution from Panjit International Inc., a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 700 V
- Current - Continuous Drain (Id) @ 25°C: 4A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 2.8Ohm @ 2A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 10.5 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 514 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 100W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole

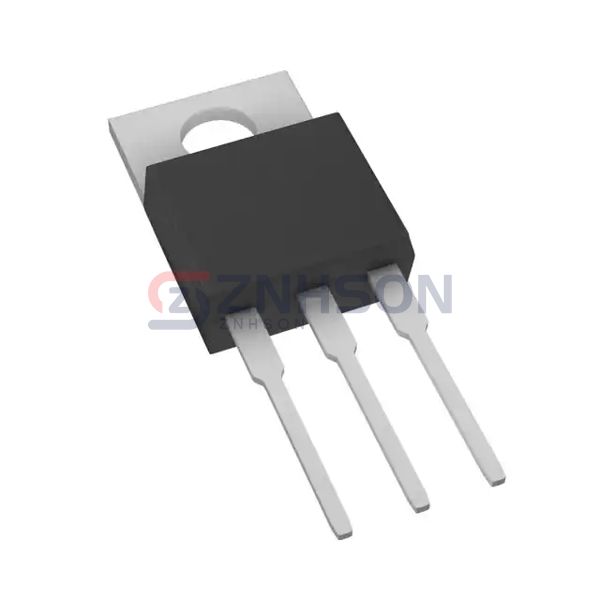

- Supplier Device Package: TO-220AB
- Package / Case: TO-220-3
