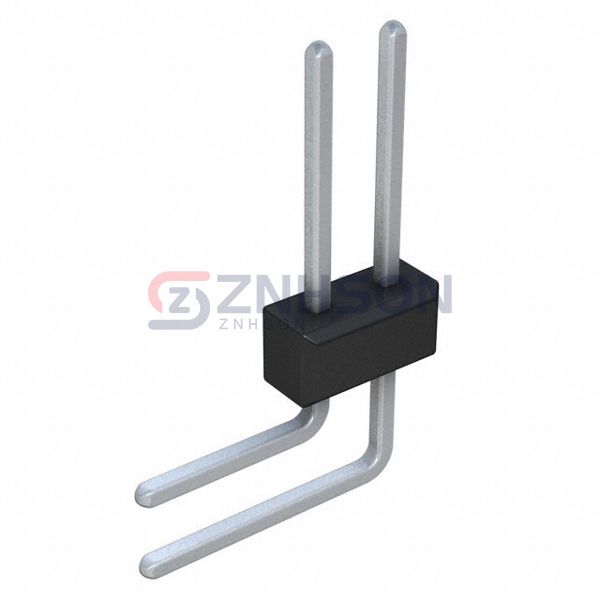

PEC01DGBN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER R/A 2POS
$0.39
Available to order
Reference Price (USD)
1+
$0.39000
10+
$0.36600
25+
$0.31400
50+
$0.26700
100+
$0.25640
250+
$0.23028
500+
$0.21980
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PEC01DGBN Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: -
- Number of Positions: 2
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.200" (5.08mm)
- Overall Contact Length: -
- Insulation Height: 0.240" (6.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.

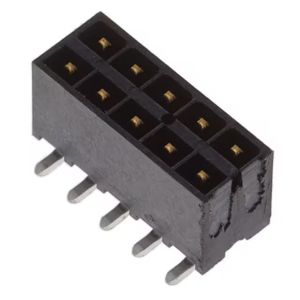

IPT1-105-01-S-D-VS-A
Samtec Inc.

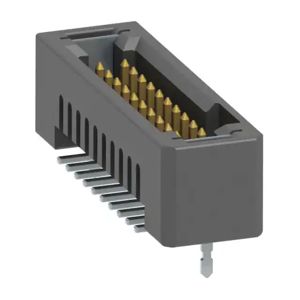

TFM-110-02-S-D-WT-P
TE Connectivity AMP Connectors

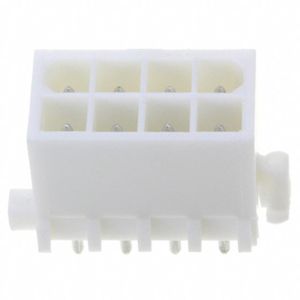

1-794065-0
Hirose Electric Co Ltd

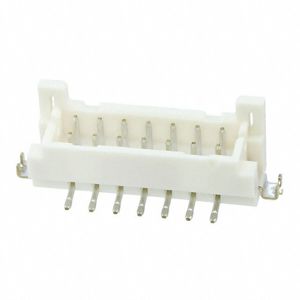

DF11Z-14DP-2V(27)
TE Connectivity AMP Connectors

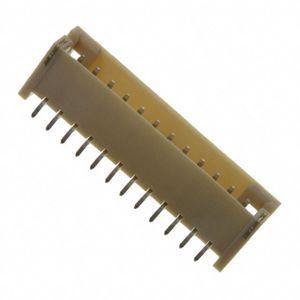

1-1775469-2
Preci-Dip

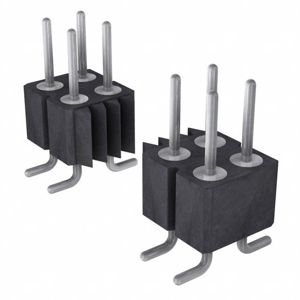

832-80-032-30-001101
Molex

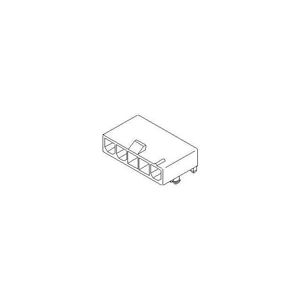

39-30-7031
Samtec Inc.
FTSH-110-05-F-DV-A
TE Connectivity AMP Connectors

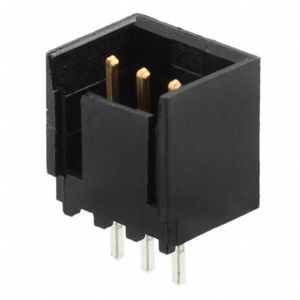

3-644896-3
