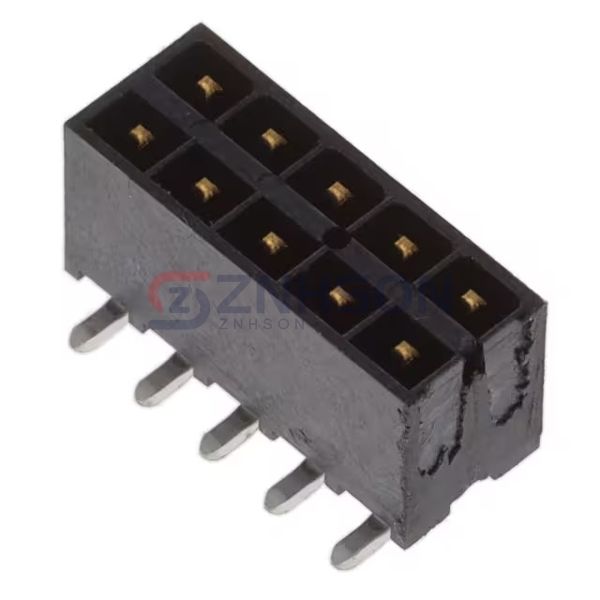

IPT1-105-01-S-D-VS-A
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 10POS 2.54MM
$7.11
Available to order
Reference Price (USD)
1+
$4.60000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience top-tier connectivity with IPT1-105-01-S-D-VS-A Samtec Inc. Rectangular Connectors - Headers, Male Pins. These connectors offer superior signal integrity, easy assembly, and long-term reliability for diverse applications. Whether for automotive, industrial, or consumer electronics, Samtec Inc. has you covered. Interested? Reach out to us for expert advice and competitive pricing!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.155" (3.94mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.250" (6.35mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.3A per Contact
- Voltage Rating: 775VAC, 1095VDC
