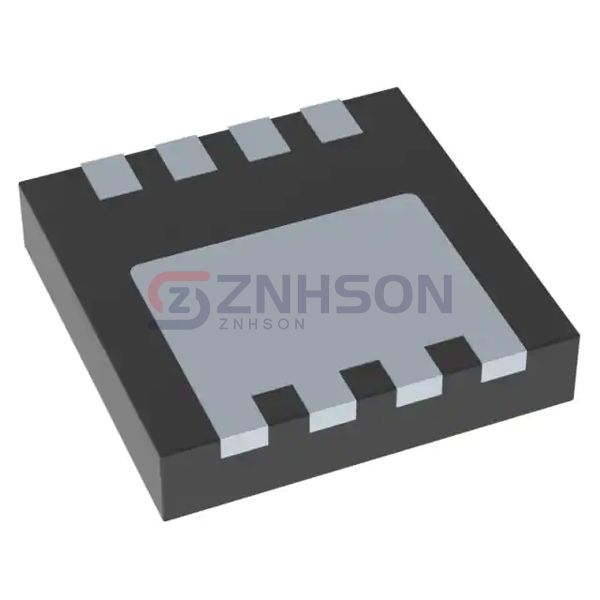

NTTFS022N15MC
onsemi
onsemi
POWER MOSFET, N CHANNEL, 150V, 3
$2.99
Available to order
Reference Price (USD)
1+
$2.99000
500+
$2.9601
1000+
$2.9302
1500+
$2.9003
2000+
$2.8704
2500+
$2.8405
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with NTTFS022N15MC by onsemi, a top-tier choice in Discrete Semiconductor Products. Specifically crafted for Transistors - FETs, MOSFETs - Single applications, this product offers superior power handling and energy efficiency. Key features include high voltage tolerance, minimal power loss, and robust durability, making it perfect for switching and amplification tasks. Whether for industrial machinery, renewable energy systems, or portable devices, NTTFS022N15MC ensures reliable operation. Ready to integrate this component into your project? Submit an inquiry now for pricing and availability!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 150 V
- Current - Continuous Drain (Id) @ 25°C: 7.4A (Ta), 37.2A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 8V, 10V
- Rds On (Max) @ Id, Vgs: 22mOhm @ 18A, 10V
- Vgs(th) (Max) @ Id: 4.5V @ 100µA
- Gate Charge (Qg) (Max) @ Vgs: 17 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1315 pF @ 75 V
- FET Feature: -
- Power Dissipation (Max): 1.2W (Ta), 71.4W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PQFN (3.3x3.3)
- Package / Case: 8-PowerWDFN
