NTMYS1D2N04CLTWG

onsemi

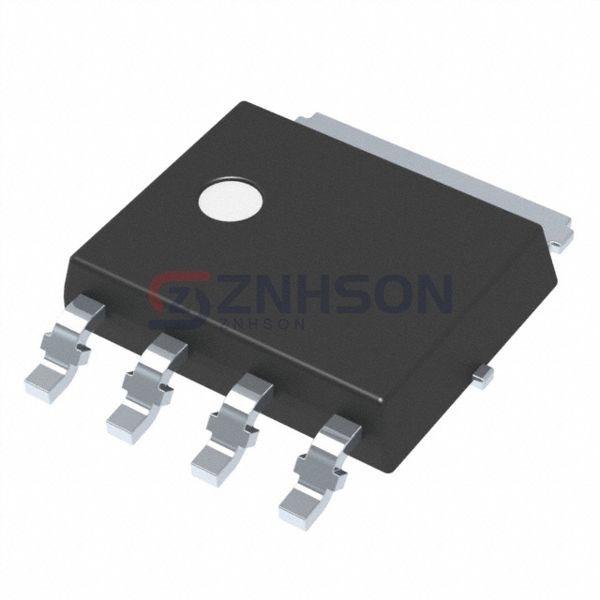

NTMYS1D2N04CLTWG Preview
onsemi
MOSFET N-CH 40V 44A/258A LFPAK4
$4.45
Available to order
Reference Price (USD)
1+
$4.45000
500+
$4.4055
1000+
$4.361
1500+
$4.3165
2000+
$4.272
2500+
$4.2275
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 40 V
  • Current - Continuous Drain (Id) @ 25°C: 44A (Ta), 258A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
  • Rds On (Max) @ Id, Vgs: 1.2mOhm @ 50A, 10V
  • Vgs(th) (Max) @ Id: 2V @ 180µA
  • Gate Charge (Qg) (Max) @ Vgs: 109 nC @ 10 V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 6330 pF @ 20 V
  • FET Feature: -
  • Power Dissipation (Max): 3.9W (Ta), 134W (Tc)
  • Operating Temperature: -55°C ~ 175°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: LFPAK4 (5x6)
  • Package / Case: SOT-1023, 4-LFPAK
