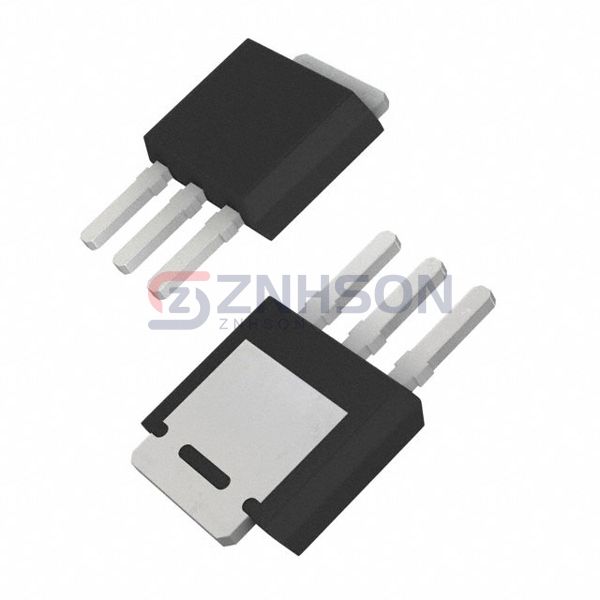

NTD3817N-1G
onsemi
onsemi
MOSFET N-CH 16V 7.6A/34.5A IPAK
$0.18
Available to order
Reference Price (USD)
1+
$0.18000
500+
$0.1782
1000+
$0.1764
1500+
$0.1746
2000+
$0.1728
2500+
$0.171
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover NTD3817N-1G, a versatile Transistors - FETs, MOSFETs - Single solution from onsemi, a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 16 V
- Current - Continuous Drain (Id) @ 25°C: 7.6A (Ta), 34.5A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 13.9mOhm @ 15A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 10.5 nC @ 4.5 V
- Vgs (Max): ±16V
- Input Capacitance (Ciss) (Max) @ Vds: 702 pF @ 12 V
- FET Feature: -
- Power Dissipation (Max): 1.2W (Ta), 25.9W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: I-PAK
- Package / Case: TO-251-3 Short Leads, IPak, TO-251AA
Related Products
Renesas Electronics America Inc
2SK1968-E
IXYS
IXFH34N50P3
Toshiba Semiconductor and Storage
TPN22006NH,LQ
Nexperia USA Inc.
PSMN6R1-30YLDX
STMicroelectronics
STU16N65M5
Infineon Technologies
BSP135H6433XTMA1
Taiwan Semiconductor Corporation
TSM70NB1R4CP ROG
Diodes Incorporated
DMP2065U-7
Vishay Siliconix

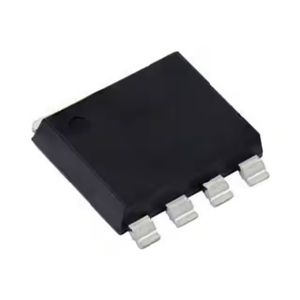

SQJQ186E-T1_GE3
