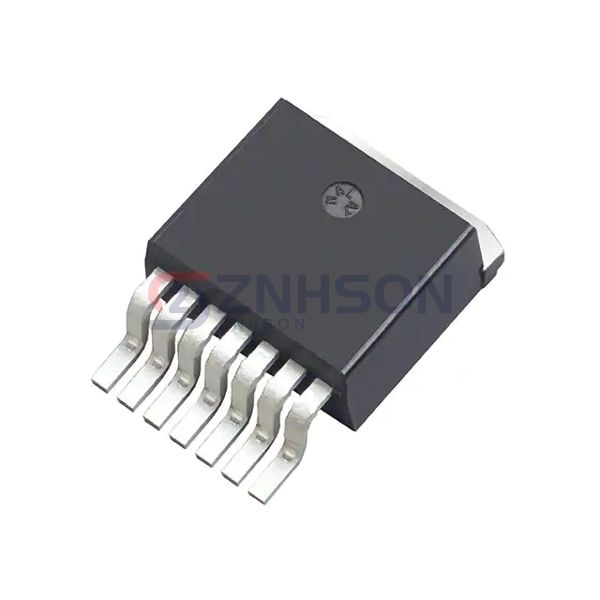

NTBG040N120SC1
onsemi
onsemi
SICFET N-CH 1200V 60A D2PAK-7
$21.66
Available to order
Reference Price (USD)
1+
$21.66000
500+
$21.4434
1000+
$21.2268
1500+
$21.0102
2000+
$20.7936
2500+
$20.577
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance NTBG040N120SC1 from onsemi, a leading solution in the Discrete Semiconductor Products category. Our Transistors - FETs, MOSFETs - Single are designed for efficiency and reliability, making them ideal for various electronic applications. These components feature low on-resistance, fast switching speeds, and excellent thermal performance, ensuring optimal functionality in power management and amplification circuits. Commonly used in automotive, industrial, and consumer electronics, NTBG040N120SC1 delivers consistent performance under demanding conditions. Interested in learning more? Contact us today for a detailed quote and technical support!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 60A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 20V
- Rds On (Max) @ Id, Vgs: 56mOhm @ 35A, 20V
- Vgs(th) (Max) @ Id: 4.3V @ 10mA
- Gate Charge (Qg) (Max) @ Vgs: 106 nC @ 20 V
- Vgs (Max): +25V, -15V
- Input Capacitance (Ciss) (Max) @ Vds: 1789 pF @ 800 V
- FET Feature: -
- Power Dissipation (Max): 357W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D2PAK-7
- Package / Case: TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
