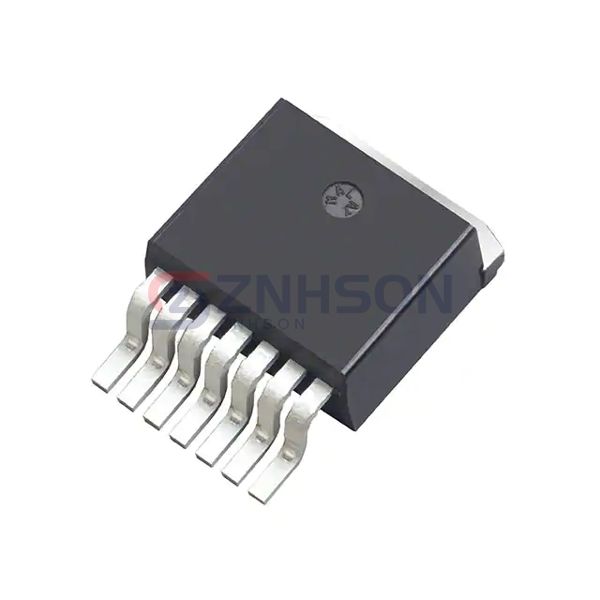

NTBG020N120SC1
onsemi
onsemi
SICFET N-CH 1200V 8.6A/98A D2PAK
$50.26
Available to order
Reference Price (USD)
1+
$50.26000
500+
$49.7574
1000+
$49.2548
1500+
$48.7522
2000+
$48.2496
2500+
$47.747
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance NTBG020N120SC1 from onsemi, a leading solution in the Discrete Semiconductor Products category. Our Transistors - FETs, MOSFETs - Single are designed for efficiency and reliability, making them ideal for various electronic applications. These components feature low on-resistance, fast switching speeds, and excellent thermal performance, ensuring optimal functionality in power management and amplification circuits. Commonly used in automotive, industrial, and consumer electronics, NTBG020N120SC1 delivers consistent performance under demanding conditions. Interested in learning more? Contact us today for a detailed quote and technical support!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 8.6A (Ta), 98A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 20V
- Rds On (Max) @ Id, Vgs: 28mOhm @ 60A, 20V
- Vgs(th) (Max) @ Id: 4.3V @ 20mA
- Gate Charge (Qg) (Max) @ Vgs: 220 nC @ 20 V
- Vgs (Max): +25V, -15V
- Input Capacitance (Ciss) (Max) @ Vds: 2943 pF @ 800 V
- FET Feature: -
- Power Dissipation (Max): 3.7W (Ta), 468W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D2PAK-7
- Package / Case: TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Related Products
Panjit International Inc.
PJQ2461_R1_00001
Microchip Technology
VN0106N3-G
Diodes Incorporated
DMTH4008LFDFW-7
Alpha & Omega Semiconductor Inc.
AONS32304
Toshiba Semiconductor and Storage
SSM3J46CTB(TPL3)
onsemi
SMBF1006LT1
Alpha & Omega Semiconductor Inc.
AOTL66608
onsemi
BSS84LT7G
Taiwan Semiconductor Corporation

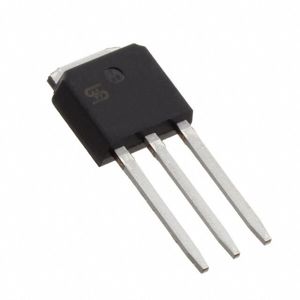

TSM4NB60CH C5G
