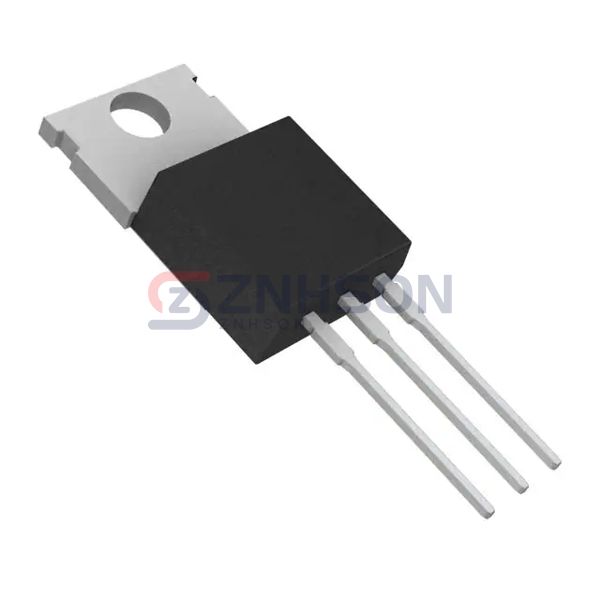

NGTB15N60EG
onsemi
onsemi
IGBT 600V 30A 117W TO220-3
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance NGTB15N60EG Single IGBTs from onsemi, designed for efficient power management in various industrial applications. These transistors offer superior switching capabilities and thermal performance, making them ideal for motor drives, renewable energy systems, and power supplies. Features include low saturation voltage, high current capacity, and robust construction. Whether you're upgrading existing systems or designing new solutions, NGTB15N60EG ensures reliability and efficiency. Contact us today for pricing and technical support!
Specifications
- Product Status: Obsolete
- IGBT Type: NPT
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 30 A
- Current - Collector Pulsed (Icm): 120 A
- Vce(on) (Max) @ Vge, Ic: 1.95V @ 15V, 15A
- Power - Max: 117 W
- Switching Energy: 900µJ (on), 300µJ (off)
- Input Type: Standard
- Gate Charge: 80 nC
- Td (on/off) @ 25°C: 78ns/130ns
- Test Condition: 400V, 15A, 22Ohm, 15V
- Reverse Recovery Time (trr): 270 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220AB
