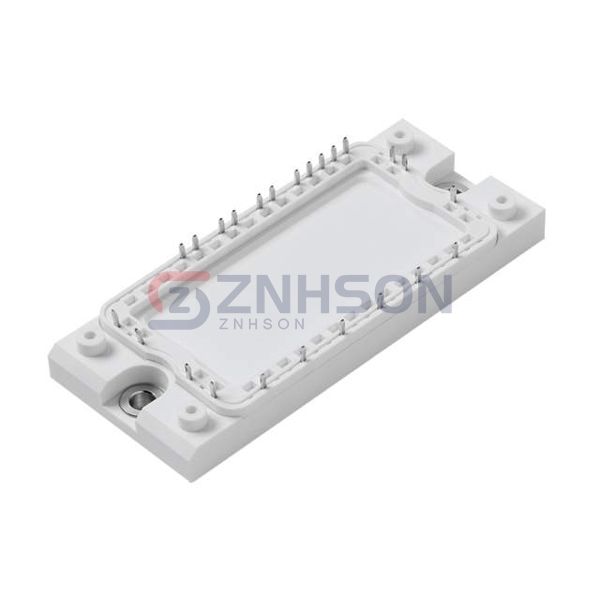

MG1225H-XBN2MM
Littelfuse Inc.
Littelfuse Inc.
IGBT MOD 1200V 25A 105W
$0.00
Available to order
Reference Price (USD)
80+
$78.00000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance MG1225H-XBN2MM IGBT Modules from Littelfuse Inc., designed for robust power management in industrial applications. These modules feature advanced thermal management, high voltage tolerance, and efficient switching capabilities, making them ideal for motor drives, renewable energy systems, and power supplies. Upgrade your systems with reliable Littelfuse Inc. technology. Contact us today for a quote!
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Configuration: Three Phase Inverter with Brake
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 25 A
- Power - Max: 105 W
- Vce(on) (Max) @ Vge, Ic: 1.7V @ 15V, 25A
- Current - Collector Cutoff (Max): 50 µA
- Input Capacitance (Cies) @ Vce: 1.1 nF @ 25 V
- Input: Three Phase Bridge Rectifier
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
Related Products
Microchip Technology
APTGF75H120TG
Powerex Inc.
CM300DX-24S
Infineon Technologies
FF600R07ME4B11BOSA1
Vishay General Semiconductor - Diodes Division
GA200SA60U
IXYS
MUBW10-06A7
Powerex Inc.
CM400DY-12NF
Infineon Technologies
6PS18012E4FG35689NWSA1
Powerex Inc.
CM400DX-12A
Microsemi Corporation

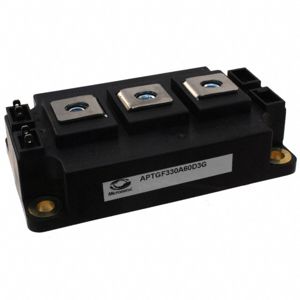

APTGF330A60D3G
