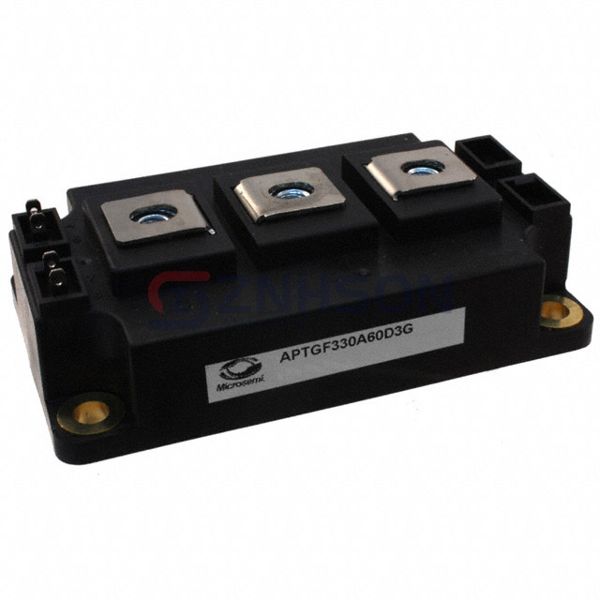

APTGF330A60D3G
Microsemi Corporation
Microsemi Corporation
IGBT MODULE 600V 520A 1560W D3
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize efficiency in your power electronics with the APTGF330A60D3G IGBT Module by Microsemi Corporation. Perfect for elevators and conveyor systems, it features low switching losses and high noise immunity. Microsemi Corporation leads in innovation contact us for expert support and competitive pricing.
Specifications
- Product Status: Obsolete
- IGBT Type: NPT
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 520 A
- Power - Max: 1560 W
- Vce(on) (Max) @ Vge, Ic: 2.45V @ 15V, 400A
- Current - Collector Cutoff (Max): 500 µA
- Input Capacitance (Cies) @ Vce: 18 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -
- Mounting Type: Chassis Mount
- Package / Case: D-3 Module
- Supplier Device Package: D3
