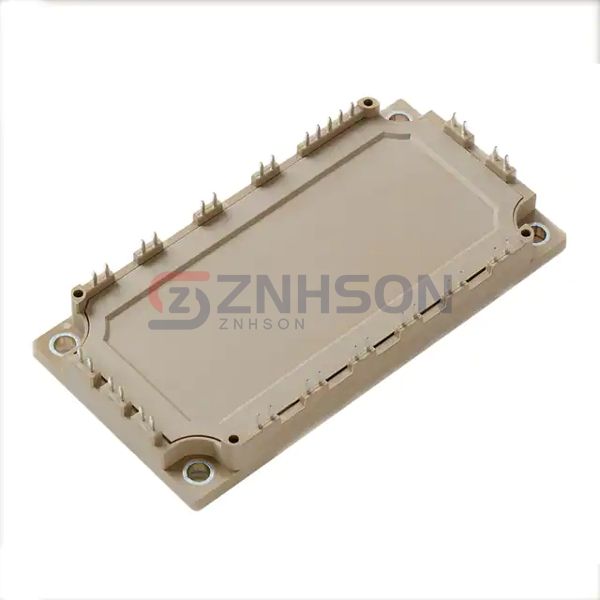

MG12150W-XN2MM
Littelfuse Inc.
Littelfuse Inc.
IGBT MOD 1200V 200A 625W
$0.00
Available to order
Reference Price (USD)
1+
$206.62000
10+
$197.46300
25+
$190.92400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MG12150W-XN2MM from Littelfuse Inc. sets the standard in IGBT Modules with its compact design and high power density. Ideal for servo drives and plasma cutting, it combines fast switching with low conduction losses. Partner with Littelfuse Inc. for top-tier semiconductor solutions. Get in touch for details!
Specifications
- Product Status: Obsolete
- IGBT Type: Trench Field Stop
- Configuration: Three Phase Inverter
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 200 A
- Power - Max: 625 W
- Vce(on) (Max) @ Vge, Ic: 1.7V @ 15V, 150A (Typ)
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 10.5 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
