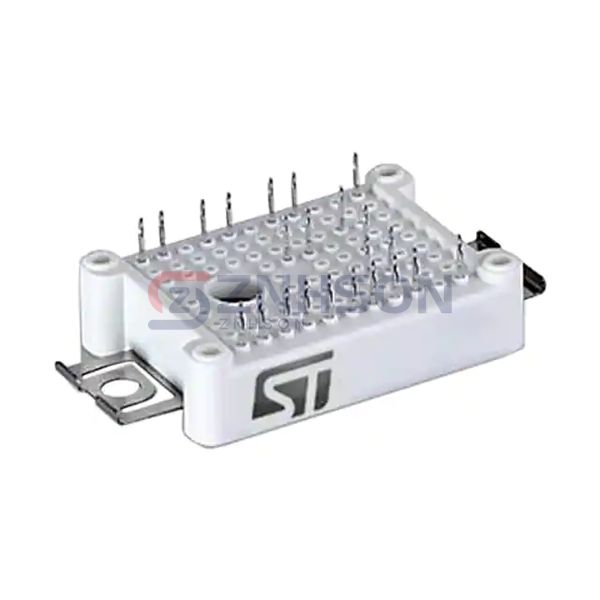

A1C15S12M3-F
STMicroelectronics
STMicroelectronics
IGBT MOD 1200V 15A ACEPACK1
$0.00
Available to order
Reference Price (USD)
1+
$39.47000
36+
$35.28000
108+
$31.97250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
STMicroelectronics's A1C15S12M3-F IGBT Module is engineered for high-power applications requiring stability and longevity. Key features include integrated temperature monitoring and low EMI emissions, perfect for medical devices and traction systems. Choose quality contact us for technical specifications and lead times.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Three Phase Inverter with Brake
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 15 A
- Power - Max: 142.8 W
- Vce(on) (Max) @ Vge, Ic: 2.45V @ 15V, 15A
- Current - Collector Cutoff (Max): 100 µA
- Input Capacitance (Cies) @ Vce: 985 pF @ 25 V
- Input: Three Phase Bridge Rectifier
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: ACEPACK™ 1
