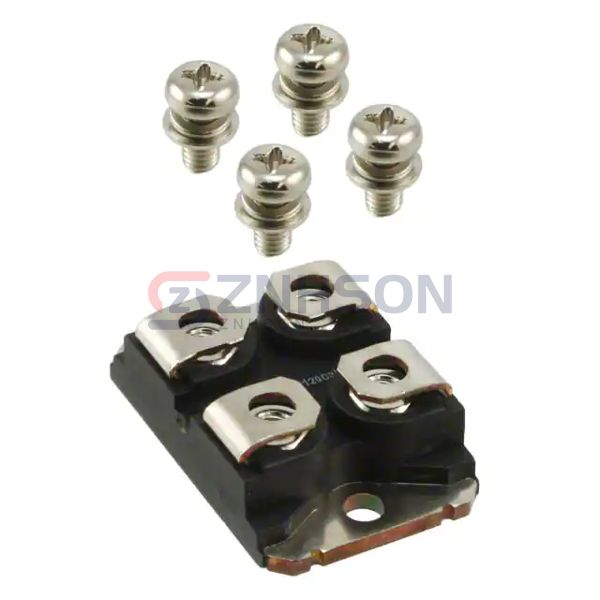

IXSN55N120AU1
IXYS
IXYS
IGBT MOD 1200V 110A 500W SOT227B
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
IXYS's IXSN55N120AU1 IGBT Module is engineered for high-power applications requiring stability and longevity. Key features include integrated temperature monitoring and low EMI emissions, perfect for medical devices and traction systems. Choose quality contact us for technical specifications and lead times.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Configuration: Single
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 110 A
- Power - Max: 500 W
- Vce(on) (Max) @ Vge, Ic: 4V @ 15V, 55A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 8 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: SOT-227-4, miniBLOC
- Supplier Device Package: SOT-227B
