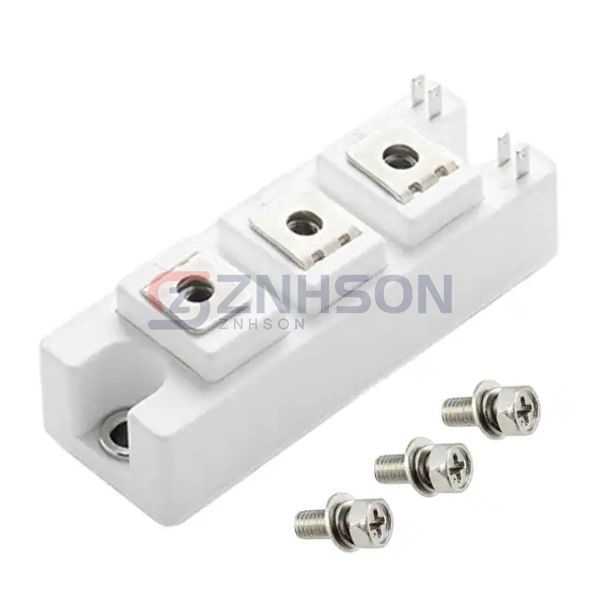

MG06100S-BR1MM
Littelfuse Inc.
Littelfuse Inc.
IGBT MODULE 600V 150A 625W S3
$0.00
Available to order
Reference Price (USD)
1+
$79.28000
10+
$74.82700
25+
$71.70960
100+
$68.14620
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MG06100S-BR1MM IGBT Module from Littelfuse Inc. delivers superior performance for demanding power control tasks. With features such as short-circuit protection and high-frequency operation, it's suited for solar inverters, industrial automation, and more. Trust Littelfuse Inc. for cutting-edge Discrete Semiconductor Products. Request a sample now!
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 150 A
- Power - Max: 625 W
- Vce(on) (Max) @ Vge, Ic: 1.9V @ 15V, 100A (Typ)
- Current - Collector Cutoff (Max): 500 µA
- Input Capacitance (Cies) @ Vce: 5.3 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: S-3 Module
- Supplier Device Package: S3
Related Products
Microsemi Corporation
APTGF50H60T2G
Infineon Technologies
2PS13512E43W35222NOSA1
Vishay General Semiconductor - Diodes Division

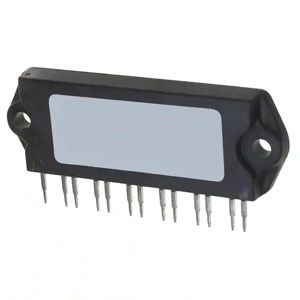

CPV364M4U
Vishay General Semiconductor - Diodes Division
VS-CPV364M4KPBF
Microsemi Corporation

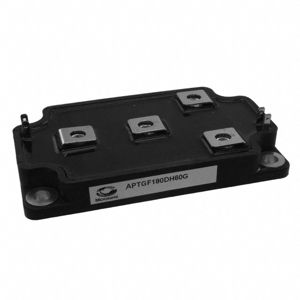

APTGF180DH60G
Vishay General Semiconductor - Diodes Division
CPV362M4K
Microchip Technology
APT30GF60JU3
Microchip Technology

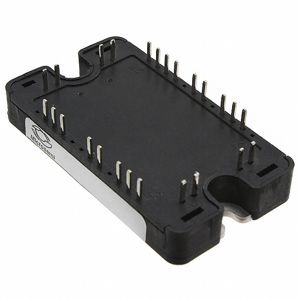

APTGF90H60T3G
Infineon Technologies

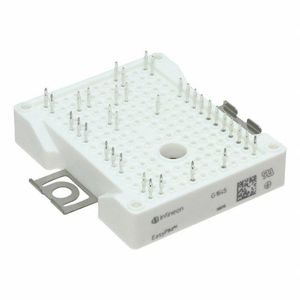

F3L11MR12W2M1B65BOMA1
