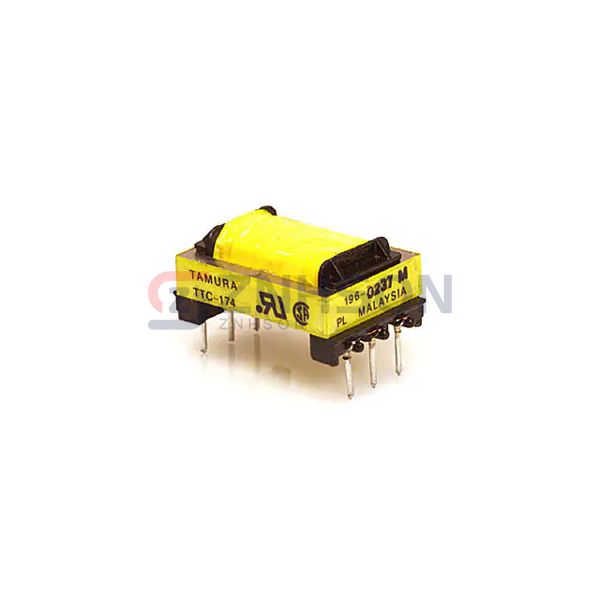

TTC-174
Tamura
Tamura
TRANSF TELE 600:600/600 50MADC
$4.28
Available to order
Reference Price (USD)
720+
$4.51725
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve crystal-clear audio with Tamura TTC-174 Audio Transformers, designed for versatility and top-notch performance. Perfect for use in studios, theaters, and home audio systems, these transformers ensure optimal signal transfer. Tamura is your trusted partner for high-end audio components. Reach out today for pricing and availability details.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:1
- Impedance - Primary (Ohms): 600
- Impedance - Secondary (Ohms): 1.2k, 600/600
- DC Resistance (DCR) - Primary: 75Ohm
- DC Resistance (DCR) - Secondary: 170Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 300Hz ~ 3.5kHz
- Frequency Response: -1.6dB ~ 0.3dB
- Voltage - Isolation: 1500VRMS @ 1 Minute
- Insertion Loss: 1.6dB Max @ 1kHz
- Return Loss: 14dB Min @ 1kHz
- Power Level: -45dB ~ 10dB
- Operating Temperature: -
- Approval Agency: CSA-C22.2 No. 66-M1988, UL1863
- Mounting Type: Through Hole
- Size / Dimension: 0.799" L x 1.201" W (20.30mm x 30.50mm)
- Height - Seated (Max): 0.500" (12.70mm)
- Termination Style: PC Pin
