MCS2305B-TP
Micro Commercial Co
Micro Commercial Co
MOSFET P-CH 20V 8.2A 8TSSOP
$1.52
Available to order
Reference Price (USD)
1+
$1.52000
500+
$1.5048
1000+
$1.4896
1500+
$1.4744
2000+
$1.4592
2500+
$1.444
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with MCS2305B-TP, a premium Transistors - FETs, MOSFETs - Single from Micro Commercial Co. As part of the Discrete Semiconductor Products lineup, this MOSFET excels in delivering high-speed switching and low power consumption. Its advanced design reduces heat generation and improves efficiency, suitable for power supplies, motor controls, and LED lighting. Trust MCS2305B-TP for consistent quality and long-lasting performance. For bulk orders or custom specifications, reach out to our sales team today!
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 8.2A (Tj)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 8.5mOhm @ 4.2A, 4.5V
- Vgs(th) (Max) @ Id: 900mV @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 29 nC @ 10 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 1255 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 1.05W
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-TSSOP
- Package / Case: 8-TSSOP (0.173", 4.40mm Width)
Related Products
Texas Instruments
CSD13381F4T
onsemi
NTMFS5C410NT1G
Texas Instruments
CSD18510Q5BT
Harris Corporation
IRFU110
Vishay Siliconix
SI2338DS-T1-GE3
Fairchild Semiconductor
FDP6030BL
onsemi
NTMFS4C08NT3G
Infineon Technologies
IPA60R165CPXKSA1
Rohm Semiconductor

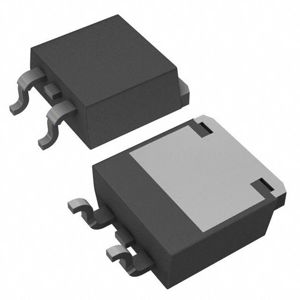

R6015ENJTL
