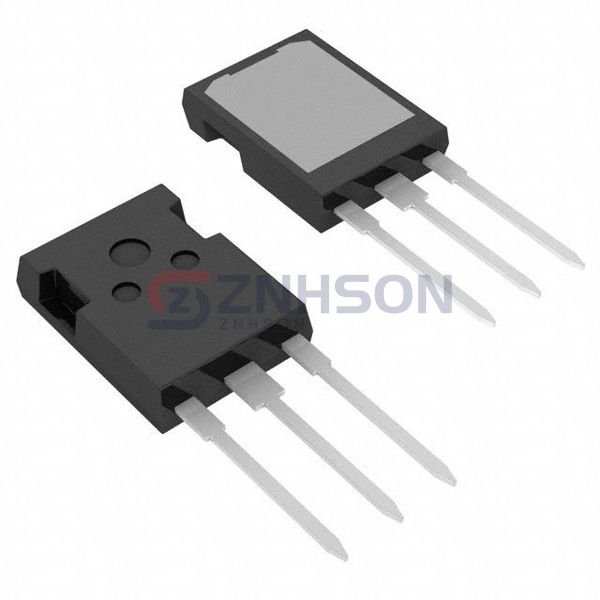

IXSX35N120BD1
IXYS
IXYS
IGBT 1200V 70A 300W PLUS247
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IXSX35N120BD1 Single IGBT by IXYS sets the standard for power semiconductor excellence. Designed for applications like electric vehicles and industrial machinery, it offers high current density and minimal thermal resistance. Key benefits include easy integration, superior durability, and compliance with international certifications. Partner with IXYS for cutting-edge solutions tailored to your needs. Contact us now to discuss specifications and delivery options!
Specifications
- Product Status: Obsolete
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 70 A
- Current - Collector Pulsed (Icm): 140 A
- Vce(on) (Max) @ Vge, Ic: 3.6V @ 15V, 35A
- Power - Max: 300 W
- Switching Energy: 5mJ (off)
- Input Type: Standard
- Gate Charge: 120 nC
- Td (on/off) @ 25°C: 36ns/160ns
- Test Condition: 960V, 35A, 5Ohm, 15V
- Reverse Recovery Time (trr): 40 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3 Variant
- Supplier Device Package: PLUS247™-3
